products details

Home Products

LG 32inch 1920×1080Pixels 400Cd/M2 Computer Gaming Monitor Digital Signage LCD Display

Name: LG 32inch 1920×1080Pixels 400Cd/M2 Computer Gaming Monitor Digital Signage LCD Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LD320EUN-SEM1
Price: 30.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	LD320EUN-SEM1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

400cd

Connector:

51PIN

Contrast Ratio:

1300:1

Working Time:

50k Hours

Input Voltage:

12 V

Signal Type:

LCM

Packaging Details:

Industrial packing

Product Description

LG 32inch 1920×1080Pixels 400Cd/M² 51pin Computer Gaming Monitor LD320EUN-SEM1 Digital Signage LCD Display

Product Overview

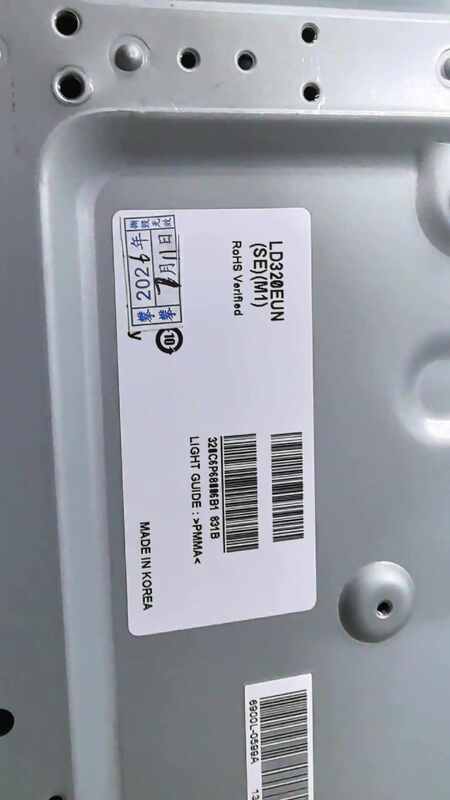

LG Display Co., Ltd. LD320EUN-SEM1 is a 32.0-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. This digital signage display features landscape/portrait orientation, matte surface, and is designed for applications such as digital signage. Please note this model has been discontinued.

Technical Specifications

Manufacturer	LG Display
Model Name	LD320EUN-SEM1
Display Size	32.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD, 16:9
Dot Layout	RGB Vertical Stripe
Display Area	698.4(W)×392.85(H) mm
Panel Weight	5.40/5.70Kgs (Typ./Max.)
Outline Size	727.4(W)×429(H)×29.7(D) mm
Surface	Antiglare (Haze 1%), Hard coating (2H)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	1300:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Display Mode	S-IPS, Normally Black, Transmissive
View Direction	Symmetry
Response Time	22 (G to G) ms
Display Colors	16.7M, 68% NTSC
Touch Screen	Without
Power Consumption	37.94W (Typ.)
Light Source	WLED, 50K hrs, With LED Driver
Frequency	60Hz
Interface	LVDS (2 ch, 8-bit), 51 pins Connector
Input Voltage	12.0V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

Important Note: This model mass production started Q3 2012 with last shipment Q4 2018. The product is now discontinued. For integration into future products, please contact LG Display or their distributor for latest production and specification details. Information provided is for reference only and should not be used as the sole basis for decision making.
