15.0 Inch LCD Display with 1024×768 Resolution and 250 cd/m² Brightness TFT-LCD Panel

Name: 15.0 Inch LCD Display with 1024×768 Resolution and 250 cd/m² Brightness TFT-LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TMS150XG1-10TB
Price: 30.00 USD
Availability: InStock

Brand Name:	TIANMA
Model Number:	TMS150XG1-10TB
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1024*768

Brightness:

250cd

Connector:

Contrast Ratio:

600:1

Working Time:

40k Hours

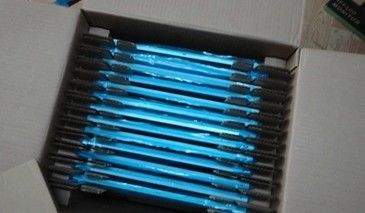

Packaging Details:

Industrial packing

Highlight:

touch screen computer monitor

high resolution touch screen monitor

Product Description

250CD/M2 20 Pin Touch Screen Computer Monitor TIANMA 15" LCD Model TMS150XG1-10TB

Product Specifications

Panel Brand AVIC

Panel Model TMS150XG1-10TB

Panel Size 15.0"

Panel Type a-Si TFT-LCD, LCM

Resolution 1024(RGB)*768, XGA

Pixel Format RGB Vertical Stripe

Display Area 304.128(W)*228.096(H) mm

Bezel Opening 307.4(W)*231.3(H) mm

Outline Size 326.5(W)*253.5(H)*12(D) mm

Surface Antiglare

Brightness 250 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.)

Viewing Angle 80/80/80/80 (Typ.)(CR≥10)

Display Mode TN, Normally White, Transmissive

Response Time 2/6 (Typ.)(Tr/Td)

Display Colors 16.7M 60% (CIE1931)

Lamp Type 2 pcs CCFL, 40K hours, Without Driver

Frequency 60Hz

Touch Screen Without

Panel Weight 1.00Kgs (Typ.)

Signal Interface LVDS (1 ch, 8-bit), 20 pins, Connector

Input Voltage 3.3V (Typ.)

Operating Temperature 0 ~ 55°C

Storage Temperature -20 ~ 60°C

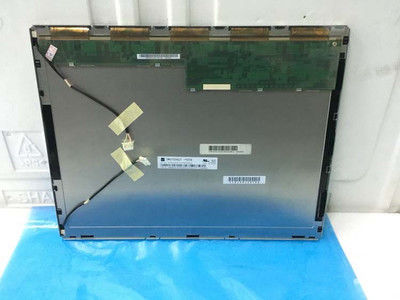

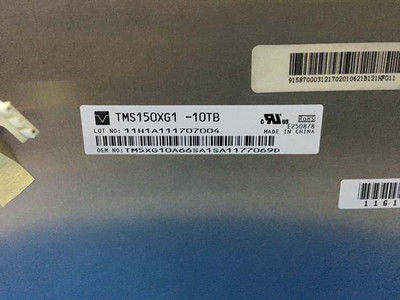

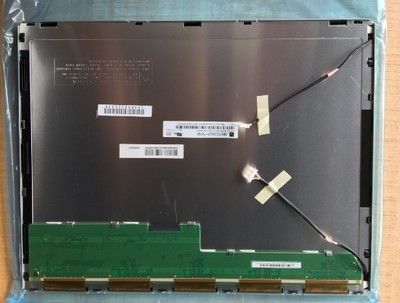

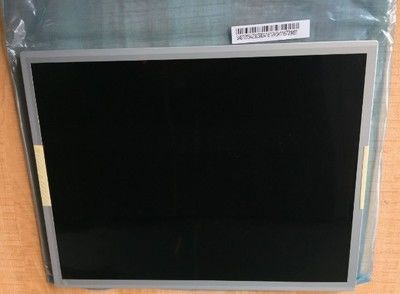

Product Images

Product Overview

The TMS150XG1-10TB is a 15.0 inch diagonal a-Si TFT-LCD display panel from Shanghai AVIC Optoelectronics Co. Ltd. (AVIC), featuring an integral CCFL backlight system without backlight driver and without touch screen. Key features include antiglare surface, wide viewing angle, landscape orientation, and TC0'5.0 compliance. This model is recommended for desktop monitor applications.

Production Status Note: This model entered mass production in Q2 2010 with last shipment in Q3 2014. The TMS150XG1-10TB is currently discontinued. For integration into future products, we strongly recommend contacting AVIC or their agent for the latest production and specification details. The production status shown is for reference only and should not be used as the basis for decision making.

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment.
