7.0" WVGA LCD Display with 800×480 Resolution and 350 cd/m² Brightness TFT-LCD Panel

7.0" WVGA LCD Display with 800×480 Resolution and 350 cd/m² Brightness TFT-LCD Panel

Brand Name:	TIANMA
Model Number:	TM070RDHG12
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262k Colors

Model:

Style:

Wide Screen High Resolution 800*480

Brightness:

350cd

Connector:

Contrast Ratio:

500:1

Working Time:

20k Hours

Packaging Details:

Industrial packing

Highlight:

high resolution touch screen monitor

smart touch screen monitor

Product Description

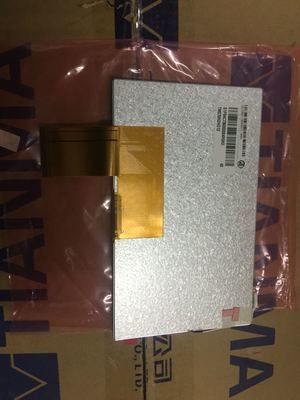

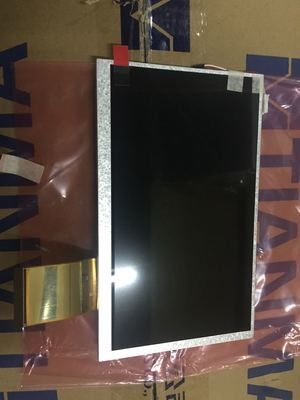

TIANMA TM070RDHG12 7" LCD Display Panel

Product Overview

TIANMA TM070RDHG12 is a 7.0-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system, designed for applications including portable DVD players and digital photo frames.

Technical Specifications

Panel Brand: TIANMA

Panel Model: TM070RDHG12

Panel Size: 7.0"

Panel Type: a-Si TFT-LCD, LCM

Resolution: 800(RGB)*480, WVGA

Pixel Format: RGB Vertical Stripe

Display Area: 154.08(W)*85.92(H) mm

Brightness: 350 cd/m² (Typ.)

Contrast Ratio: 500:1 (Typ.)

Viewing Angle: 70/70/60/70 (Typ.)(CR≥10)

Response Time: 20ms (Typ.)(Tr+Td)

Display Colors: 262K/16.7M 50% (CIE1931)

Backlight: 3S7P WLED, 20K hours

Operating Temp: -20 ~ 70 °C

Storage Temp: -30 ~ 80 °C

Panel Weight: 165g (Typ.)

Product Details

This 7.0-inch TFT-LCD display panel features an antiglare surface, 6/8-bit selectable interface, landscape orientation, white LED backlight, and wide aspect ratio. The panel utilizes parallel RGB signal interface with 60-pin FPC connector and operates at 60Hz refresh rate.

Key features include U/D, L/R reverse functionality and recommended driver IC HX8264. The panel is designed for embedded applications and does not include touch screen capability or backlight driver.

All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure quality and performance.

Note: This model entered mass production in Q3 2015 and is currently discontinued. For the latest production status and specifications, please contact TIANMA or their authorized distributors directly.
