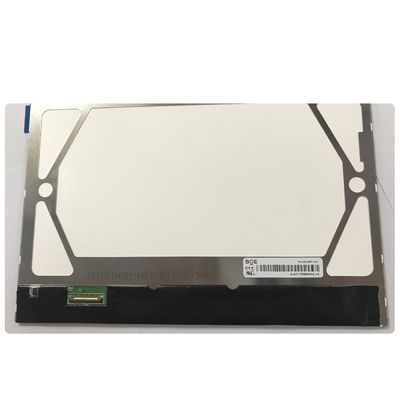

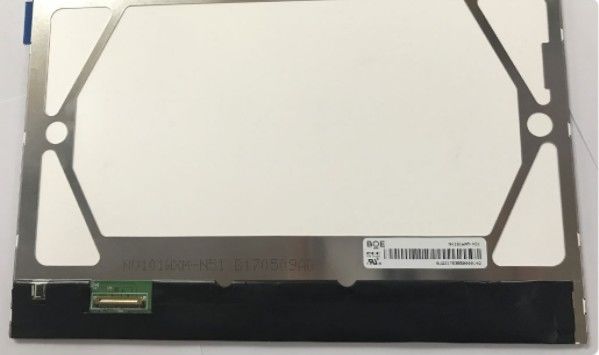

BOE 10.1 inch WXGA LCD Monitor with 1280×800 Resolution and 250 cd/m² Brightness

BOE 10.1 inch WXGA LCD Monitor with 1280×800 Resolution and 250 cd/m² Brightness

BOE 10.1 inch WXGA LCD Monitor with 1280×800 Resolution and 250 cd/m² Brightness

Brand Name: BOE
Model Number: NV101WXM-N51
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.7m Colors
Model:
WLED
Style:
Wide Screen High Resolution 1280*800
Brightness:
250cd
Connector:
30
Contrast Ratio:
800:1
Working Time:
30k Hours
Packaging Details:
Industrial packing
Highlight:

touch screen computer monitor

,

high resolution touch screen monitor

Product Description
BOE LCD Model Widescreen LCD Computer Monitors 10.1" 1280*800 Pixels NV101WXM-N51 For Notebook
Product Specifications
Brand BOE
Model NV101WXM-N51 (BOE070B)
Diagonal Size 10.1 inch
Display Type a-Si TFT-LCD, LCM
Resolution 1280*800 (WXGA)
Active Area 216.96*135.6 mm
Outline Dimensions 228.21*148.86*4.59 mm
Brightness 250 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.)
Response Time 25 ms (Typ.)
Viewing Angle 85/85/85/85 (CR≥10)
Operating Mode IPS, Normally Black, Transmissive
Color Support 16.7M 50% (CIE1931)
Backlight WLED with LED Driver
Interface 30 pins eDP (2 Lanes) Connector
Power Supply 3.3V (Typ.)
Frame Rate 60Hz
Touch Panel Without
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
BOE 10.1 inch WXGA LCD Monitor with 1280×800 Resolution and 250 cd/m² Brightness 0
Product Overview
The NV101WXM-N51 (Product Code: BOE070B) is a 10.1-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver and no touch screen capability.
Key Features
  • Glare surface with hard coating (2H) and antireflection treatment
  • Wide viewing angle IPS technology
  • Landscape orientation design
  • White LED backlight system
  • Wide aspect ratio widescreen format
  • Reverse signal interface position
  • eDP 1.3 interface compatibility
  • Slim form factor with PCBA bent design (Depth ≤3.0mm)
Application Recommendations
This display model is specifically designed for laptop applications and similar notebook computing devices requiring high-quality visual performance in a compact form factor.
Production Information: Mass production began in Q2 2017. This model is currently in production. Specification information was first recorded on April 27, 2018. For the latest production status and detailed specifications, we strongly recommend contacting BOE or their authorized agents directly.
Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
