18.5 Inch 1366x768 Resolution LCD Monitor with 250cd/m2 Brightness and 30K Hours WLED Backlight for Desktop

18.5 Inch 1366x768 Resolution LCD Monitor with 250cd/m2 Brightness and 30K Hours WLED Backlight for Desktop

18.5 Inch 1366x768 Resolution LCD Monitor with 250cd/m2 Brightness and 30K Hours WLED Backlight for Desktop

Brand Name: BOE
Model Number: MT185WHM-N20
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.7m Colors
Model:
WLED
Style:
Wide Screen High Resolution 1366*768
Brightness:
250cd
Connector:
30
Contrast Ratio:
1000:1
Working Time:
30k Hours
Packaging Details:
Industrial packing
Highlight:

touch screen computer monitor

,

high resolution touch screen monitor

Product Description
19" 1366*768 Pixels High Resolution Touch Screen Monitor MT185WHM-N20 250CD/M² For Desktop Computer
Product Specifications
Brand BOE
Model MT185WHM-N20
Diagonal Size 18.5 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1366(RGB)*768 [WXGA]
Active Area 409.8(H)*230.4(V) mm
Outline Dimensions 430.4(H)*254.6(V)*11.4(D) mm
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Response Time 1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle 85/85/80/80 (Typ.)(CR＞10)
Operating Mode TN, Normally White, Transmissive
Support Color 16.7M 72% (CIE1931)
Light Source WLED, 30K hours, W/O Driver
Weight 1.31Kgs (Typ.)
Interface Type 30 pins LVDS (1 ch, 8-bit), Connector
Power Supply 5.0V (Typ.)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
18.5 Inch 1366x768 Resolution LCD Monitor with 250cd/m2 Brightness and 30K Hours WLED Backlight for Desktop 0
Product Overview

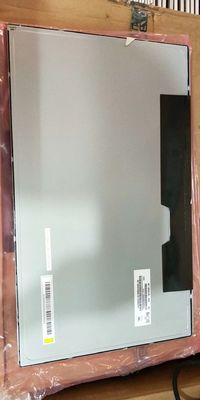

MT185WHM-N20 is an 18.5" diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system without driver and without touch screen. This industrial-grade monitor panel operates within a temperature range of 0~50°C and stores safely between -20~60°C.
Key Features
  • High Color Gamut for vibrant display performance
  • Antiglare Surface with hard coating (3H) treatment
  • Wide Viewing Angle for optimal visibility
  • Landscape orientation design
  • White LED Backlight with 30,000-hour lifespan
  • Wide Aspect Ratio (WXGA)
  • Normal Signal Interface Position
  • ES 7.0 Compliant
Recommended Applications
This model is specifically designed for desktop monitor applications and other industrial display requirements where reliable performance and high-resolution output are essential.
Production Status Note: This model entered mass production in Q2 2015 and is currently in production. Specifications were last updated on May 17, 2019. For the latest production status and detailed specifications, we strongly recommend contacting BOE or their authorized agents directly.
All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
