BOE 10.1inch LCD Display with 1280x800 Pixels Resolution and 300cd Brightness Industrial LCD Panel

Name: BOE 10.1inch LCD Display with 1280x800 Pixels Resolution and 300cd Brightness Industrial LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: GV101WXM-N81
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	GV101WXM-N81
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*800

Brightness:

300cd

Connector:

Contrast Ratio:

800:1

Working Time:

15k Hours

Packaging Details:

Industrial packing

Product Description

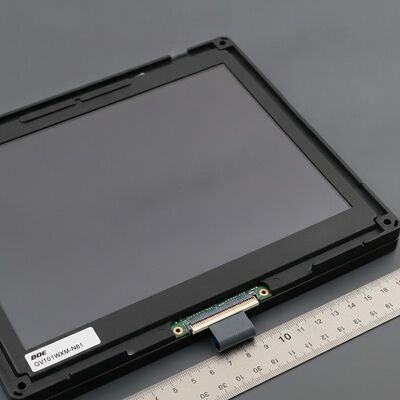

BOE 10.1-inch Outdoor High Brightness LCD Display GV101WXM-N81

High-performance 10.1-inch industrial LCD panel featuring 1280×800 WXGA resolution, 300 cd/m² brightness, and 30-pin eDP connector. Designed for outdoor and industrial applications with wide operating temperature range.

Product Overview

GV101WXM-N81 (Product Code: BOE03F2) is a 10.1" diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver. This industrial-grade panel operates in temperatures from -20°C to 60°C and is recommended for Pad & Tablet and Industrial applications.

Key Features

10.1-inch WXGA display (1280×800 pixels, 16:10 aspect ratio)
High brightness: 300 cd/m² (typical) for outdoor visibility
WLED backlight with 15,000 hours lifespan and integrated LED driver
Wide viewing angles: 85/85/85/85 (CR≥10)
eDP interface (1 Lane, eDP1.2) with 30-pin connector
Industrial operating temperature: -20°C to 60°C
ADS technology with normally black, transmissive display mode

Technical Specifications

Manufacturer	BOE	Display Size	10.1"
Resolution	1280(RGB)×800, WXGA	Display Area	216.96×135.6 mm
Outline Size	228.3×149.05×2.6 mm	Brightness	300 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)	Viewing Angle	85/85/85/85 (Typ.)
Display Colors	16.7M, 48% NTSC	Power Consumption	2.16/2.52W (Typ./Max.)
Response Time	30 ms (Typ.)	Interface	eDP (1 Lane), eDP1.2, 30-pin connector
Input Voltage	3.3V (Typ.)	Panel Weight	155g (Max.)
Surface Treatment	Glare (Haze 0%), Hard coating	Touch Screen	Without
Operating Temperature	-20°C to 60°C	Storage Temperature	-20°C to 60°C

Note: Production status information is for reference only. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production and specification details.
