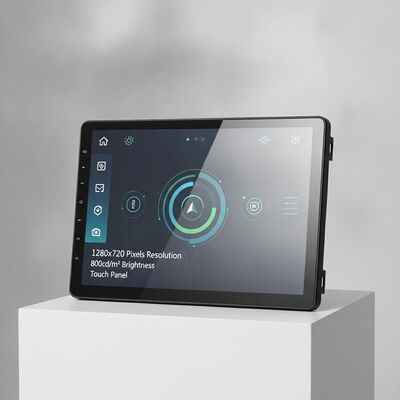

BOE 9inch Automotive LCD Display with 1280x720 Pixels Resolution 800cd/m² Brightness and Touch Panel

Name: BOE 9inch Automotive LCD Display with 1280x720 Pixels Resolution 800cd/m² Brightness and Touch Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AV090HDM-N13
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	AV090HDM-N13
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*1024

Brightness:

800cd

Connector:

Contrast Ratio:

900:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Product Description

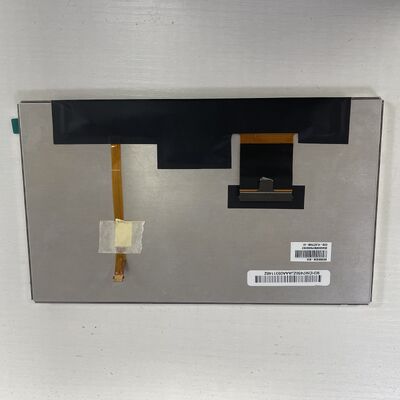

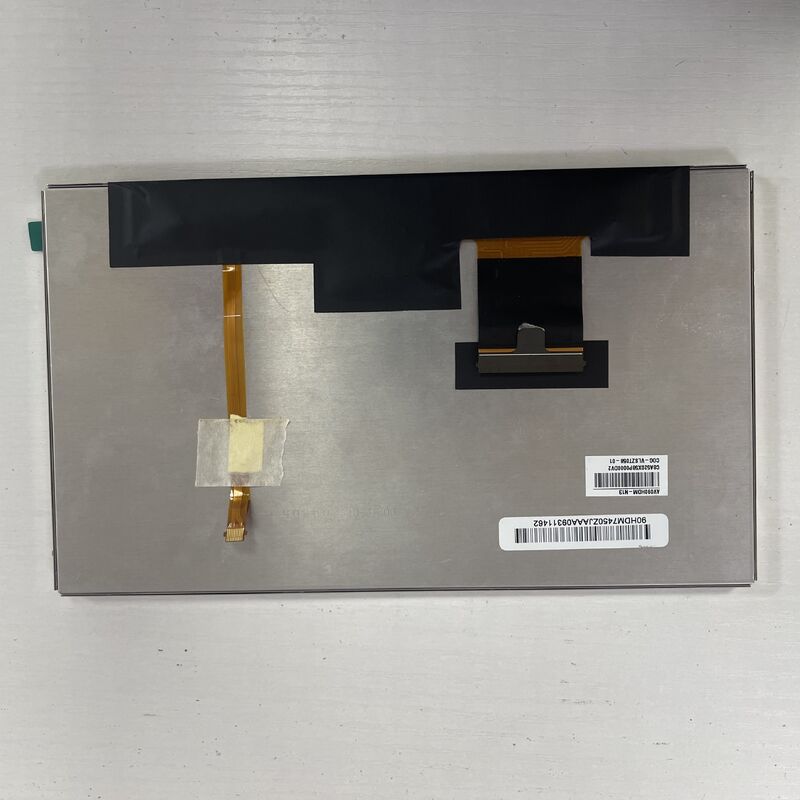

BOE 9-inch Automotive LCD Display AV090HDM-N13

Product Overview

The BOE AV090HDM-N13 is a 9.0-inch automotive TFT-LCD display panel featuring 1280×720 resolution, 800 cd/m² brightness, and integrated touch panel functionality. This high-performance display is engineered for automotive applications with wide temperature operation and robust construction.

AV090HDM-N13 (Alias: COG-VLSZT047-01) is a 9.0" diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system. It operates within a temperature range of -35°C to 85°C and can withstand storage temperatures from -40°C to 90°C, with maximum vibration tolerance of 3.0G (29.4 m/s²).

Key features include DCI-P3 and sRGB color gamut support, wide temperature operation, high brightness, WLED backlight, display reversal capabilities, and matte surface treatment. The display incorporates the HX8290-B-LT driver IC and is recommended for automotive display applications.

Manufacturer Information

Manufacturer	BOE
Model Number	AV090HDM-N13

Technical Specifications

Screen Size	9.0 inch
Screen Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×720, 16:9, WXGA
Pixel Structure	RGB Vertical Stripe
Active Area	198.72×111.78 mm (H×V)
Outline Dimensions	210.7×124.45×8.15 mm (H×V×D)
Surface Feature	Antiglare, Hard coating
Brightness	800 cd/m² (Typical)
Contrast Ratio	900:1 (Typical)
Viewing Angle	80/80/80/80 (Typical, CR≥10)
Response Time	25 ms (Typical, Tr+Td)
Display Type	ADS, Normally Black, Transmissive
Display Colors	16.7M, 100% sRGB
Application	Automotive
Backlight	9S3P WLED, 30K hours, No Driver
Refresh Rate	60Hz
Touchscreen	Yes, optical bonding
Signal Type	LVDS (1 ch, 8-bit), 60 pins FPC
Voltage Supply	3.3/18.4/12.2V (Typical)(VCC/VHG/CGL)

Environmental Ratings

Storage Temperature	-40°C to 90°C
Operating Temperature	-35°C to 85°C
Vibration	3.0G (29.4 m/s²)

Important Note: Mass production began in Q3 2019 and this model is currently in production. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and detailed specifications. The information provided here is for reference only and should not be used as the sole basis for decision-making.
