BOE 19" Industrial LCD Monitor ZV190E0M-N10 with 1280x1024 Resolution 450cd/m² Brightness and 50K Hours Working Time

Name: BOE 19" Industrial LCD Monitor ZV190E0M-N10 with 1280x1024 Resolution 450cd/m² Brightness and 50K Hours Working Time
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: ZV190E0M-N10
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	ZV190E0M-N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*1024

Brightness:

450cd

Connector:

Contrast Ratio:

1000:1

Working Time:

50k Hours

Packaging Details:

Industrial packing

Product Description

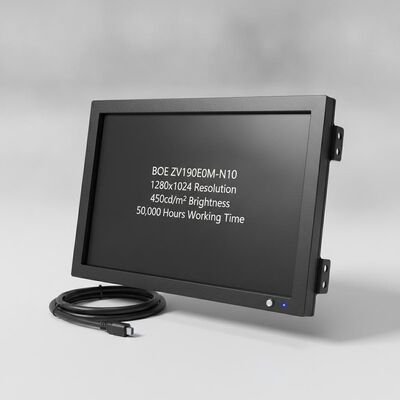

BOE 19" Industrial LCD Monitor ZV190E0M-N10

Product Overview

The ZV190E0M-N10 is a 19.0-inch diagonal industrial LCD monitor from BOE Technology Group Co., Ltd., featuring 1280×1024 resolution, 450 cd/m² brightness, and 50,000 hours working time. This a-Si TFT-LCD display panel includes an integral WLED backlight system with LED driver and operates within an extensive temperature range of -20°C to 70°C.

Technical Specifications

Manufacturer	BOE
Model Name	ZV190E0M-N10
Display Size	19.0 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, 5:4, SXGA
Pixel Structure	RGB Vertical Stripe
Display Area	374.784(W)×299.827(H) mm
Panel Weight	1.80Kgs (Typ.)
Outline Size	396(W)×324(H)×13.38(D) mm
Brightness	450 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	ADS, Normally Black, Transmissive
View Direction	Symmetry
Response Time	14 (Typ.)(G to G) ms
Display Colors	16.7M, 90% NTSC
Frequency	60Hz
Touch Screen	Without
Power Consumption	19.2/23.5W (Typ./Max.)
Light Source	11S4P WLED, 50K hrs, With LED Driver
Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Operating Temperature	-20°C to 70°C
Storage Temperature	-20°C to 75°C

Application & Features

This industrial LCD monitor features wide color gamut, sRGB compatibility, WLED backlight with 50,000+ hours lifespan, and integrated LED driver. Recommended for industrial applications requiring reliable performance in demanding environments.

Important Note: Mass production began in Q2 2020 and the model remains in production. For integration into your products, contact BOE or their authorized agents for the latest production status and specification details. Information provided is for reference only and should not be used as the sole basis for decision-making.
