BOE TV070WS5-M00 7inch LCD Screen with 1024×600 Resolution 350cd/m² Brightness and 50pin Connector for Tablet PC Display

Name: BOE TV070WS5-M00 7inch LCD Screen with 1024×600 Resolution 350cd/m² Brightness and 50pin Connector for Tablet PC Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TV070WS5-M00
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	TV070WS5-M00
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

Lcm

Style:

Wide Screen High Resolution 1024*600PIXELS

Brightness:

350cd

Connector:

50PIN

Contrast Ratio:

800:1

Working Time:

20k Hours

Input Voltage:

3.3 V

Screen Size:

7inch

Packaging Details:

Industrial packing

Product Description

BOE 7inch Tablet PC LCD Screen TV070WS5-M00 with 300cd/m² Brightness 1024×600Pixels Resolution and 50pin Connector for PAD Display

Product Overview

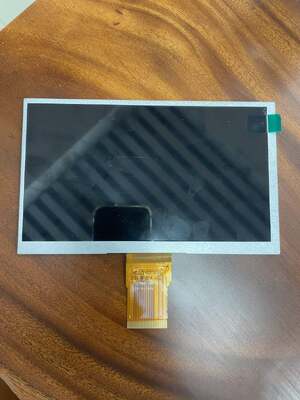

The TV070WS5-M00 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system without backlight driver or touch screen.

Operating temperature range: -10°C to 60°C
Storage temperature range: -20°C to 70°C
WLED Backlight with U/D, L/R Reverse capability
Matte surface finish
Recommended for Pad & Tablet applications

Technical Specifications

Manufacturer	BOE
Model Name	TV070WS5-M00
Display Size	7.0 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, 16:9, WSVGA
Pixel Structure	RGB Vertical Stripe
Display Area	154.214(W)×85.92(H) mm
Panel Weight	110g (Max.)
Outline Size	164.86(W)×99.6(H)×3.8(D) mm
Surface	Antiglare
Brightness	350 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	ADS, Normally Black, Transmissive
View Direction	Symmetry
Response Time	30 (Typ.)(Tr+Td) ms
Display Colors	16.7M, 50% NTSC
Frequency	60Hz
Touch Screen	Without
Light Source	WLED, 20K hrs, Without Driver
Interface	Parallel RGB (1 ch, 8-bit), 50 pins FPC
Input Voltage	3.3/9.8/18/-7.5V (Typ.)(VDD/AVDD/VGH/VGL)

Production Information

Mass production began in Q4 2025. This model is currently in production. Specification data was first input on July 23, 2025.

Important Note: For embedding TV070WS5-M00 LCM in your future products, we strongly recommend contacting BOE or their agent to learn the latest production and specification details. The production status information provided is for reference only and should not be used as the basis for user decision making.
