BOE 10.1inch Outdoor High Brightness LCD Screen with 700cd/m² Brightness 1280×720 Resolution and 60pin Connector for Automotive Display Touch Panel

Brand Name:	BOE
Model Number:	DV122FBM-N00
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*720PIXELS

Brightness:

700cd

Connector:

60PIN

Contrast Ratio:

1000:1

Working Time:

30k Hours

Input Voltage:

3.3 V

Packaging Details:

Industrial packing

Product Description

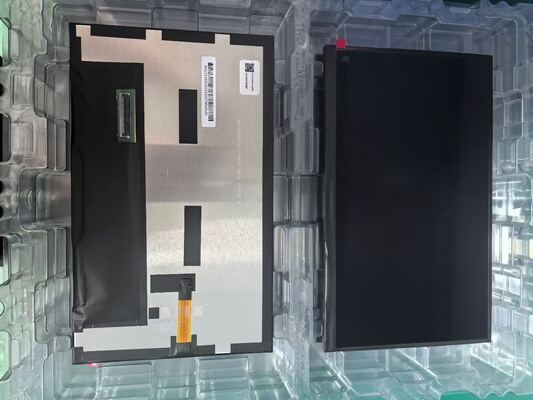

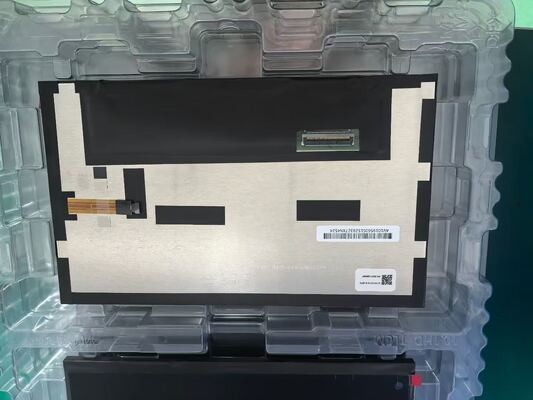

BOE 10.1-inch Outdoor High-Brightness LCD Screen AV101HDT-A10-28PD

Product Overview

10.1-inch diagonal automotive display with 1280×720 resolution, 700 cd/m² brightness, and 60-pin connector featuring touch panel capability.

Technical Description

The AV101HDT-A10-28PE is a 10.1-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integral WLED backlight system, PCAP touchscreen, and wide operating temperature range.

Key features include touch capability, wide temperature range, high brightness, and WLED backlight technology. Recommended applications include outdoor high-brightness environments and automotive displays.

Specifications

Brand	BOE	Model	AV101HDT-A10-28PE
Diagonal Size	10.1 inch	Type	a-Si TFT-LCD, Assembly
Pixel Number	1280(RGB)×720, 16:9, WXGA	Pixel Format	RGB Vertical Stripe
Active Area	223.68(H)×125.82(V) mm	Physical Size	247.86(H)×160.65(V)×11.49(D) mm
Luminance	700 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	30 (Max.)(Tr+Td) mm	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive	Support Color	16.7M, 72% NTSC
Light Source	9S3P WLED, Without Driver	Frame Rate	60Hz
Touch Panel	PCAP, I²C	Interface Type	LVDS (1 ch, 8-bit), 60 pins Connector
Power Supply	3.3V (Typ.)	Operating Temperature	-30 ~ 85 °C
Storage Temperature	-40 ~ 90 °C	Surface Coating	Hard coating

Additional Features

View Direction: Symmetry
Designed for automotive display applications

Production Information

Mass production began in Q4 2020. This model is currently in production. Specification data was first entered on September 28, 2021, with the latest update on March 10, 2025.

Important Note: For integration of AV101HDT-A10-28PE Assembly in your products, we strongly recommend contacting BOE or their authorized agents for the latest production and specification details. The production status information provided is for reference only and should not be used as the sole basis for decision-making.
