Innolux 5Inch LCD Monitor ZE050NA-08G with 640*480 Pixels 159PPI and 50PIN Connector for Video Door Phone

Name: Innolux 5Inch LCD Monitor ZE050NA-08G with 640*480 Pixels 159PPI and 50PIN Connector for Video Door Phone
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: ZE050NA-08G
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	ZE050NA-08G
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.2m Colors

Model:

XGA

Style:

Wide Screen High Resolution 650*480Pixels

Brightness:

300cd

Connector:

Contrast Ratio:

500:1

Working Time:

10k Hours

Packaging Details:

Industrial packing

Highlight:

640*480 Pixels LCD Monitor

50PIN Connector LCD Panel

159PPI TFT-LCD Display

Product Description

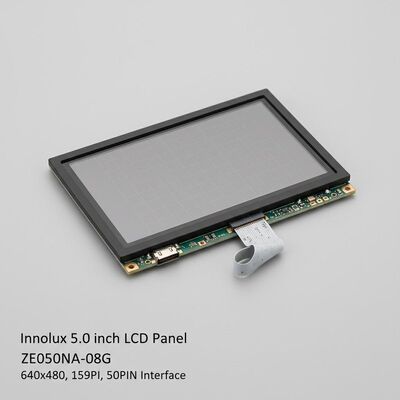

Innolux 5-Inch LCD Monitor ZE050NA-08G

5-inch diagonal LCD display panel with 640*480 VGA resolution, 159 PPI pixel density, and 50-pin interface. Designed for video door phone applications and industrial displays.

Product Overview

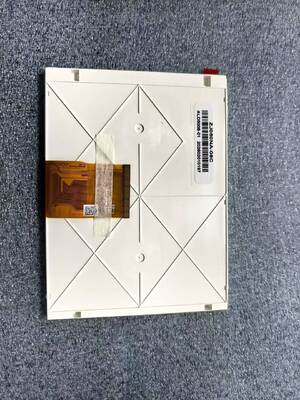

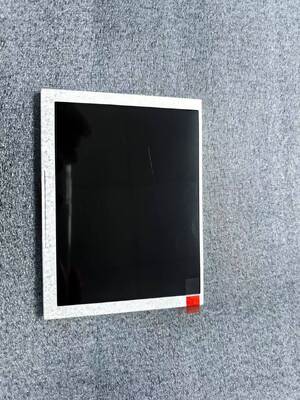

The Innolux ZE050NA-08G is a 5.0-inch diagonal a-Si TFT-LCD display panel featuring a compact design with high-quality visual performance. This panel operates without backlight and touch screen, making it ideal for specialized industrial applications.

Key Specifications

Brand & Model	Innolux ZE050NA-08G
Panel Type	a-Si TFT-LCD, CELL, FOG
Diagonal Size	5.0 inches
Resolution	640(RGB)*480 (VGA), 159 PPI
Active Area	101.76mm * 76.32mm
Outline Dimensions	109.55mm * 85.86mm * 1.23mm
Display Colors	16.7 Million (50% NTSC)
Contrast Ratio	500:1 (Typical)
Viewing Angle	70/70/50/70 (CR≥10)
Response Time	10/15 ms (Tr/Td Typical)
Surface Treatment	Antiglare, Matte

Technical Features

Display Mode: TN, Normally White, Transmissive
Best Viewing Position: 6 o'clock
Signal Interface: Parallel RGB (1 channel, 8-bit)
Connector: 50-pin FPC
Driver IC: COG built-in with 1 source chip
Input Voltage: 3.3V/10.4V/17V/-7.0V (DVDD/AVDD/VGH/VGL)
Refresh Rate: 60Hz
Glass Depth: 0.40+0.40 mm
Transmissivity: 4.78% (with Polarizer)

Environmental Specifications

Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Primary Applications

This LCD panel is specifically designed for video door phone systems and similar industrial display applications requiring reliable performance in various environmental conditions.

Production Status Note: Mass production began in Q2 2017. For the most current production status and detailed specifications, we recommend contacting Innolux or their authorized distributors directly.
