BOE 14inch Laptop LCD Panel LM140GF2L01 with 2560*1600 Pixels and 400cd/m² Brightness for Tablet Displays & Laptop Screen

Brand Name:	BOE
Model Number:	BP101WX1-300
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*800PIXELS

Brightness:

450cd

Connector:

45PIN

Working Time:

30k Hours

Input Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

2560*1600 Pixels Laptop LCD Panel

400cd/m² Brightness LCD Display

14inch TFT-LCD Panel

Product Description

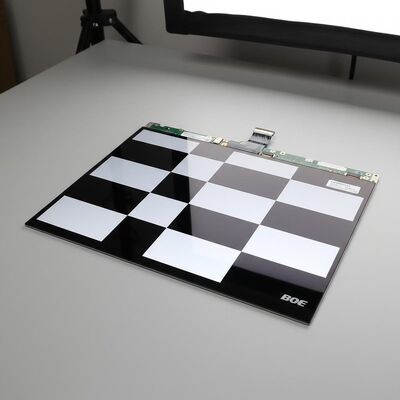

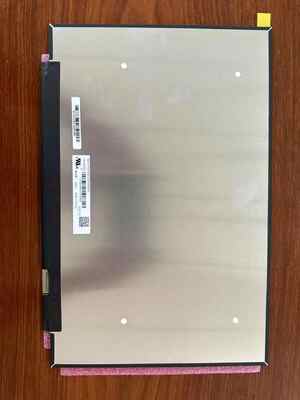

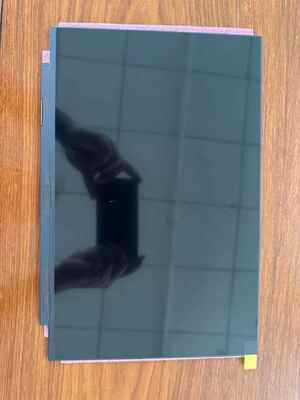

BOE 14-inch Laptop LCD Panel LM140GF2L01

High-resolution 14.0-inch display panel featuring 2560*1600 WQXGA resolution with 400 cd/m² brightness, designed for tablet displays and laptop screens.

Product Overview

LM140GF2L01 is a 14.0-inch diagonal Oxide TFT-LCD display panel from BOE Technology Group Co., Ltd. This panel includes an integrated WLED backlight system with LED driver and operates without a touch screen. Mass production began in Q1 2021 and the model remains in current production.

Key Features

2560*1600 WQXGA resolution (215 PPI)
400 cd/m² typical brightness
1200:1 contrast ratio
100% sRGB color gamut (16.7 million colors)
eDP 1.4 interface with 40-pin connector
PSR and Adaptive sync technology
Antiglare surface treatment (25% haze)
WLED backlight with 15,000-hour lifespan

Technical Specifications

Brand	BOE
Model P/N	LM140GF2L01
Diagonal Size	14.0 inches
Panel Type	Oxide TFT-LCD, LCM
Resolution	2560(RGB)*1600, WQXGA
Active Area	301.824(W) * 188.64(H) mm
Outline Size	306.82(W) * 205.24(H) * 2.4(D) mm
Brightness	400 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10)
Response Time	25ms (Typical, Tr+Td)
Display Colors	16.7M, 100% sRGB
Signal Interface	eDP (4 Lanes), eDP1.4, 40-pin connector
Input Voltage	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Application

Recommended for laptop displays and tablet applications. Features slim design with PCBA flat configuration (T≤3.2mm).

For integration into future products, we strongly recommend contacting BOE or their authorized agents for the latest production status and specification details. The production information provided is for reference only and should not be used as the sole basis for decision-making.
