BOE 18.5inch Digital Signage LCD Panel with 1920*1080 Pixels and 30PIN Connector for High Resolution Display

Name: BOE 18.5inch Digital Signage LCD Panel with 1920*1080 Pixels and 30PIN Connector for High Resolution Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: QV185FHB-N82
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	QV185FHB-N82
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

300cd

Connector:

30PIN

Contrast Ratio:

1200:1

Working Time:

30k Hours

Screen Size:

18.5inch

Packaging Details:

Industrial packing

Highlight:

18.5inch LCD Panel

1920*1080 Pixels Digital Signage Display

30PIN Connector TFT-LCD Screen

Product Description

BOE 18.5-inch Digital Signage LCD Panel QV185FHB-N82

BOE Technology Group Co., Ltd. QV185FHB-N82 is a 18.5-inch diagonal a-Si TFT-LCD display panel designed for digital signage applications. This panel features FHD resolution, high contrast ratio, and operates without backlight or touch screen.

Key Specifications

Brand	BOE
Model Number	QV185FHB-N82
Diagonal Size	18.5 inches
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080 (FHD), 119 PPI
Active Area	408.96(W)×230.04(H) mm
Outline Dimensions	422.2(H)×244.1(V)×1.2(D) mm
Contrast Ratio	1200:1 (Typical)
Response Time	14ms (Typical, G to G)
Viewing Angle	89/89/89/89 (CR≥10) Left/Right/Up/Down
Operating Mode	HADS, Normally Black, Transmissive

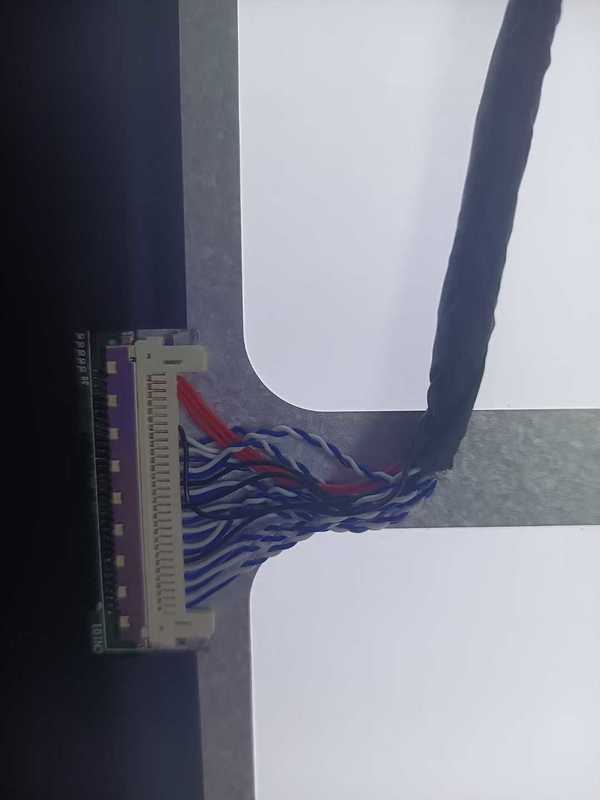

Interface Type	LVDS (2 ch, 8-bit), 30-pin Connector
Power Supply	5.0V (Typical)
Weight	330g (Typical)

Display Features

Landscape/Portrait orientation support
Matte surface with antiglare treatment (Haze 25%)
Hard coating (3H) for durability
Supports 16.7M colors with 72% NTSC
Built-in 3 source chips driver IC
Frame rate: 60Hz standard, 120Hz/240Hz with embedded MEMC circuit

Environmental Specifications

Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Production Status: This model entered mass production in Q2 2022 and is currently in production. Specifications were last updated on April 30, 2024. For the latest production and specification details, please contact BOE or their authorized distributors.
