AUO 32inch Medical LCD Panel with 3840*2160Pixels Resolution and 850cd High Brightness for Industrial and Medical Imaging

Name: AUO 32inch Medical LCD Panel with 3840*2160Pixels Resolution and 850cd High Brightness for Industrial and Medical Imaging
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G320ZAN02.3
Price: 120 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G320ZAN02.3
MOQ:	10pcs
Price:	USD120/PC
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.06b Colors

Model:

Lcm

Style:

Wide Screen High Resolution 1024*768Pixels

Brightness:

850cd

Connector:

51PIN

Contrast Ratio:

1500:1

Working Time:

30k Hours

Screen Size:

32inch

Packaging Details:

Industrial packing

Highlight:

32inch Medical LCD Panel

3840*2160Pixels Industrial LCD Panel

850cd TFT-LCD Display Panel

Product Description

AUO 32-inch Industrial & Medical Imaging LCD Panel G320ZAN02.3

The AU Optronics Corp. G320ZAN02.3 is a 32.0-inch diagonal a-Si TFT-LCD display panel featuring ultra-high definition resolution, wide color gamut, and exceptional brightness for demanding industrial and medical imaging applications.

Key Features

Ultra HD 3840×2160 resolution with 137 PPI
High brightness 850 cd/m² for outdoor visibility
Wide color gamut: 98% DCI-P3, 99% Adobe RGB
10-bit color depth displaying 1.07 billion colors
Advanced refresh rate options including MEMC technology
Robust construction for industrial environments
Integrated WLED backlight with driver

Technical Specifications

Model Number: G320ZAN02.3

Panel Type: a-Si TFT-LCD, LCM

Resolution: 3840(RGB)×2160 (UHD)

Active Area: 708.48×398.52 mm

Brightness: 850 cd/m² (Typical)

Contrast Ratio: 1500:1 (Typical)

Viewing Angle: 89/89/89/89 (CR≥10)

Response Time: 10/10 ms (Tr/Td)

Display Colors: 1.07 Billion, 98% DCI-P3

Refresh Rates: 60Hz, 120Hz, 240Hz with MEMC

Signal Interface: eDP (4 Lanes), HBR2, 51-pin

Input Voltage: 12.0V (Typical)

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 60°C

Weight: 4.63 kg (Typical)

Backlight Life: 30,000 hours

Physical Dimensions

Outline Size: 727.3×424.5×20.98 mm

Bezel Opening: 714.48×404.52 mm

Surface Treatment: Glare (Haze 0%)

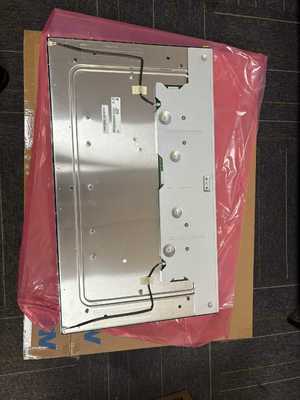

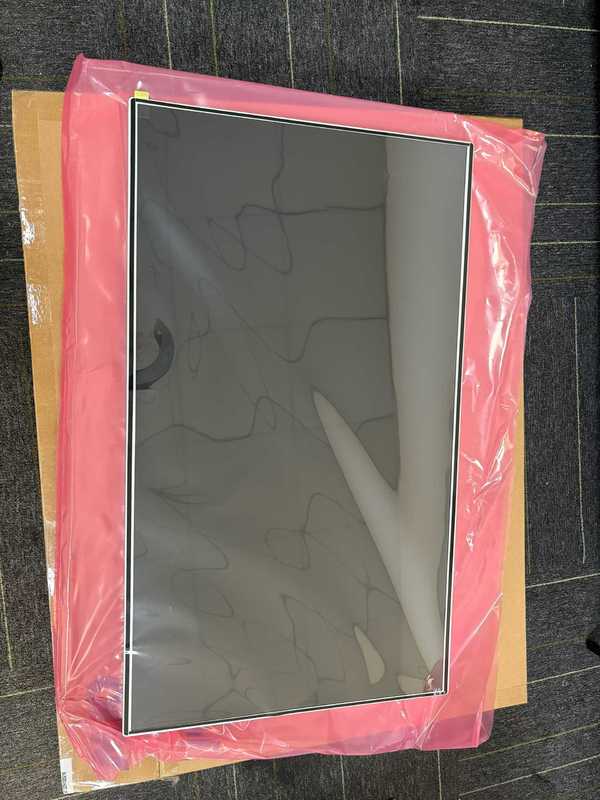

Product Images

Important Note: This model entered mass production in Q2 2023 and is currently in production. For the latest production status and detailed specifications for integration into your products, we strongly recommend contacting AUO or their authorized distributors directly.
