BOE 12.1inch Medical LCD Panel with 1024×768 Pixels and 500cd/m² Brightness for Industrial & Healthcare Applications

BOE 12.1inch Medical LCD Panel with 1024×768 Pixels and 500cd/m² Brightness for Industrial & Healthcare Applications

BOE 12.1inch Medical LCD Panel with 1024×768 Pixels and 500cd/m² Brightness for Industrial & Healthcare Applications

Brand Name: BOE
Model Number: EV121XOM-N10
MOQ: 10pcs
Price: USD48/PC
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.7M Colors
Model:
Lcm
Style:
Wide Screen High Resolution 1024*768Pixels
Brightness:
500cd
Connector:
20PIN
Contrast Ratio:
1200:1
Working Time:
50k Hours
Screen Size:
12.1inch
Packaging Details:
Industrial packing
Highlight:

1024*768Pixels Medical Imaging LCD Panel

,

EV121XOM-N10 Medical Imaging LCD Panel

,

12.1inch Medical Imaging LCD Panel

Product Description
BOE 12.1-inch Industrial & Medical Imaging LCD Panel
Model EV121XOM-N10 is a high-performance 12.1-inch TFT-LCD display panel from BOE Technology Group, specifically designed for industrial and medical imaging applications. This panel delivers exceptional clarity with 1024*768 XGA resolution and features robust construction for demanding environments.
Key Features
  • 12.1-inch diagonal a-Si TFT-LCD display
  • XGA resolution (1024*768 pixels, 105 PPI)
  • High brightness: 500 cd/m² typical
  • Enhanced contrast ratio: 1200:1 typical
  • Wide viewing angles: 88/88/88/88 (L/R/U/D)
  • WLED backlight with 50,000-hour lifespan
  • Integrated LED driver included
  • LVDS interface with 20-pin connector
  • 3.3V typical operating voltage
  • Optimized for industrial and healthcare applications
Technical Specifications
Model Number EV121XOM-N10
Panel Type a-Si TFT-LCD, LCM
Active Area 245.76 * 184.32 mm
Bezel Opening 249 * 187.5 mm
Outline Dimensions 260.5 * 204 * 9.2 mm (H*V*D)
Pixel Format RGB Vertical Stripe
Color Depth 16.7M colors (72% NTSC)
Response Time 25 ms typical (Tr+Td)
Refresh Rate 60Hz (120Hz with embedded MEMC circuit)
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Vibration Resistance 1.5G (14.7 m/s²) maximum
Weight 520g maximum
Display Characteristics
This panel utilizes ADS technology with normally black, transmissive work mode, providing excellent image quality and reliability. The display supports multiple refresh rate configurations including 120Hz panel operation and 240Hz with embedded MEMC circuit for enhanced motion performance.

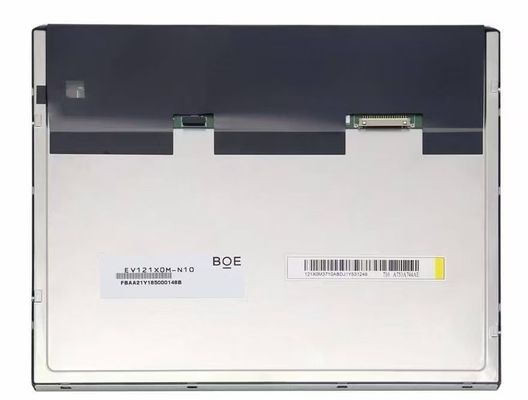

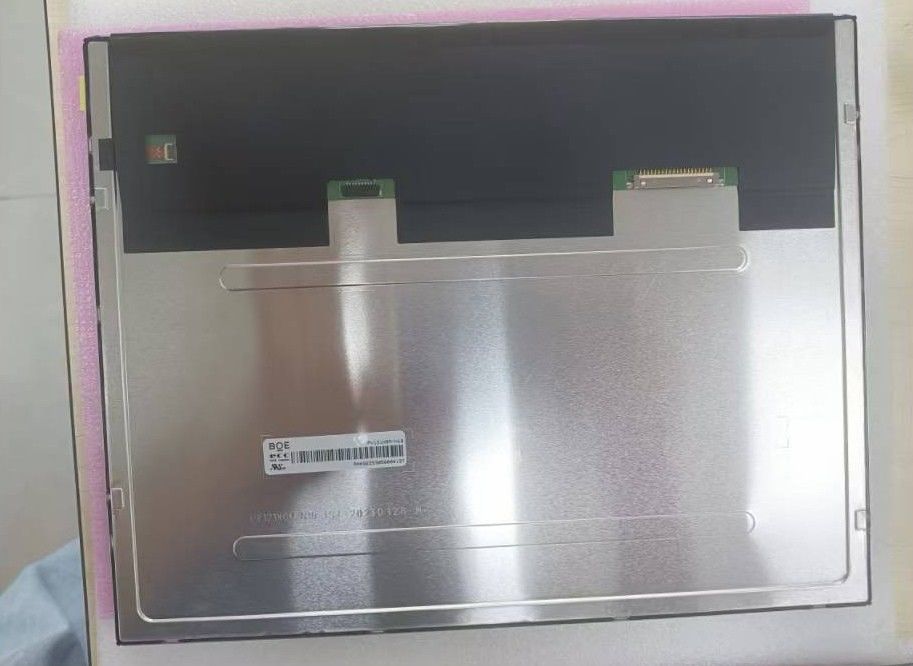

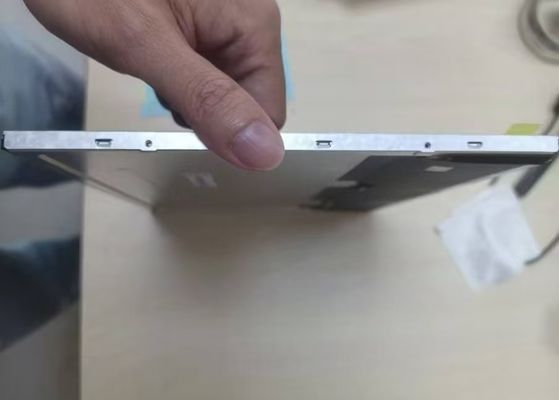

Product Images
BOE 12.1inch Medical LCD Panel with 1024×768 Pixels and 500cd/m² Brightness for Industrial & Healthcare Applications 0 BOE 12.1inch Medical LCD Panel with 1024×768 Pixels and 500cd/m² Brightness for Industrial & Healthcare Applications 1
Important Note: This model entered mass production in Q1 2020 and is currently in production. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and detailed specifications. Information provided is for reference only and should not be used as the sole basis for decision-making.
