TIANMA 10.1 Inch Medical LCD Panel WXGA 1080x800pixels 500CD/M2 TFT-LCD Display Panel TM101JDHG30

TIANMA 10.1 Inch Medical LCD Panel WXGA 1080x800pixels 500CD/M2 TFT-LCD Display Panel TM101JDHG30

TIANMA 10.1 Inch Medical LCD Panel WXGA 1080x800pixels 500CD/M2 TFT-LCD Display Panel TM101JDHG30

Brand Name: TIANMA
Model Number: TM101JDHG30
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1080*800pixels
Style:
40PIN IPS
Brightness:
500CD/M2
Color:
262k
Contrast Ratio:
800 :1
Working Life:
50K Hours
Packaging Details:
Industrial packing
Highlight:

1080x800pixels Medical LCD Display

,

Lcd Display Panel TM101JDHG30

,

Lcd Display Panel 500cd/M2

Product Description
TIANMA 10.1 Inch Industrial LCD Panel
Medical WXGA 149PPI 1080x800pixels TM101JDHG30
The TM101JDHG30 is a 10.1-inch diagonal a-Si TFT-LCD display panel from Tianma Microelectronics Co., Ltd., featuring an integrated WLED backlight system with LED driver. This industrial and medical-grade display panel operates without a touch screen and is designed for demanding applications.
Key Features
  • 10.1-inch WXGA display with 1280*800 resolution
  • 149 PPI pixel density for sharp image quality
  • 500 cd/m² high brightness for clear visibility
  • 800:1 contrast ratio with symmetrical viewing
  • WLED backlight with 50,000+ hours lifespan
  • Built-in LED driver circuitry
  • LVDS interface with 40-pin connector
  • Wide operating temperature range: -20°C to 70°C

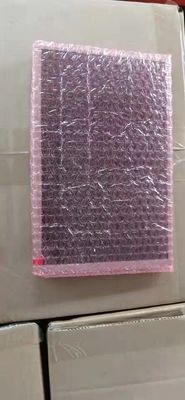

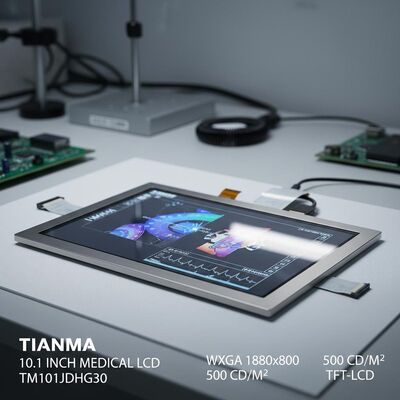

TIANMA 10.1 Inch Medical LCD Panel WXGA 1080x800pixels 500CD/M2 TFT-LCD Display Panel TM101JDHG30 0 TIANMA 10.1 Inch Medical LCD Panel WXGA 1080x800pixels 500CD/M2 TFT-LCD Display Panel TM101JDHG30 1
Technical Specifications
Brand TIANMA
Model TM101JDHG30
Diagonal Size 10.1 inch
Display Type a-Si TFT-LCD, LCM
Pixel Format 1280(RGB)*800 [WXGA] 149PPI
Active Area 216.96(H)*135.6(V) mm
Outline Dimensions 231.22(H)*150.6(V)*6.6(D) mm
Luminance 500 cd/m² (Typical)
Contrast Ratio 800:1 (Typical)
Viewing Angle 85/85/85/85 (CR≥10)
Response Time 10/15 ms (Typical, Tr/Td)
Color Support 262K/16.7M, 50% NTSC
Light Source WLED [6S5P], 50K hours, With LED Driver
Weight 280g (Typical)
Interface Type LVDS (1 ch, 6/8-bit), 40 pins Connector
Power Supply 3.3V (Typical)
Frame Rate 60Hz
Touch Panel Without
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Application Areas
TIANMA 10.1 Inch Medical LCD Panel WXGA 1080x800pixels 500CD/M2 TFT-LCD Display Panel TM101JDHG30 2 TIANMA 10.1 Inch Medical LCD Panel WXGA 1080x800pixels 500CD/M2 TFT-LCD Display Panel TM101JDHG30 3 TIANMA 10.1 Inch Medical LCD Panel WXGA 1080x800pixels 500CD/M2 TFT-LCD Display Panel TM101JDHG30 4
This display panel is specifically designed for industrial equipment, medical imaging systems, VOIP phones, and other demanding applications requiring reliable performance in challenging environments.
Important Note: This model entered mass production in Q3 2016 and is currently in production. For the latest production status and specification details, we strongly recommend contacting TIANMA or their authorized agents directly. The information provided is for reference only and should not be used as the sole basis for decision-making.
