BOE 23.8inch Medical LCD Panel EV238FHM-N10 with 1920*1080Pixels Resolution and 300CD/M2 Brightness

BOE 23.8inch Medical LCD Panel EV238FHM-N10 with 1920*1080Pixels Resolution and 300CD/M2 Brightness

BOE 23.8inch Medical LCD Panel EV238FHM-N10 with 1920*1080Pixels Resolution and 300CD/M2 Brightness

Brand Name: BOE
Model Number: EV238FHM-N10
MOQ: 10pcs
Price: USD48/PC
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.7M Colors
Model:
Lcm
Style:
Wide Screen High Resolution 1080*1920Pixels
Brightness:
300cd
Connector:
30PIN
Contrast Ratio:
1000:1
Working Time:
30k Hours
Screen Size:
23.8inch
Packaging Details:
Industrial packing
Highlight:

EV238FHM-N10 Medical LCD Panel

,

23.8inch Medical LCD Panel

,

Medical Imaging LCD Panel

Product Description

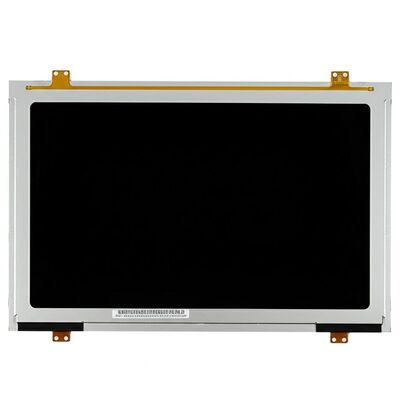

BOE 23.8-inch Medical Imaging LCD Panel EV238FHM-N10
The EV238FHM-N10 is a 23.8-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system. This medical-grade display offers 1920*1080 resolution with 92 PPI and 300 cd/m² brightness, designed specifically for medical imaging applications.
Key Features
• 23.8-inch FHD medical imaging display
• 100% sRGB color gamut with 16.7 million colors
• Wide viewing angles: 89/89/89/89 (CR≥10)
• Multiple refresh rate options including 120Hz and 240Hz modes
• Anti-glare surface with hard coating (3H)
• LVDS interface with 30-pin connector
• TCO 6.0 and ES6.0 compliant
Technical Specifications
Model Number EV238FHM-N10
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)*1080 (FHD), 92 PPI
Active Area 527.04 * 296.46 mm
Brightness 300 cd/m² (Typical)
Contrast Ratio 1000:1 (Typical)
Response Time 14 ms (G to G, Typical)
Display Colors 16.7M, 100% sRGB
Input Voltage 5.0V (Typical)
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Weight 2.39 kg (Typical)
BOE 23.8inch Medical LCD Panel EV238FHM-N10 with 1920*1080Pixels Resolution and 300CD/M2 Brightness 0
Important Note: This model entered mass production in Q4 2015 and is now discontinued. The information provided is for reference only. For current production status and latest specifications, please contact BOE or their authorized agents directly.
