Sharp 12.1inch Gaming LCD Panel LQ121S1LG75 with 800*600Pixels Resolution and 330cd/M2 Brightness

Name: Sharp 12.1inch Gaming LCD Panel LQ121S1LG75 with 800*600Pixels Resolution and 330cd/M2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ121S1LG75
Price: 30.00 USD
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ121S1LG75
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*600pixels

Style:

30PIN IPS

Brightness:

330CD/M2

Color:

16.7m

Contrast Ratio:

800 :1

Working Life:

50K Hours

Type:

Lcm

Size:

12.1inch

Lamp Type:

LCM

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

LQ121S1LG75 Gaming Lcd panel

800*600Pixels Gaming Lcd panel

330cd/M2 Gaming Lcd panel

Product Description

Sharp 12.1-inch Gaming LCD Panel LQ121S1LG75

The LQ121S1LG75 (Alias: FX-12-075) is a 12.1-inch diagonal a-Si TFT-LCD display panel from Sharp Corporation featuring an integral WLED backlight system with LED driver. This panel operates within a temperature range of -10°C to 75°C and can withstand storage temperatures from -30°C to 75°C, with maximum vibration tolerance of 1.0G (9.8 m/s²).

Key Features

sRGB color gamut • WLED backlight with 50,000+ hour lifespan • Built-in LED driver • 180° reverse capability • Matte surface treatment • Embedded RGB independent γ correction • Built-in dimming circuit • Designed for gaming applications

Technical Specifications

Brand	Sharp
Model	LQ121S1LG75
Diagonal Size	12.1 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)*600 (SVGA)
Pixel Density	82 PPI
Active Area	246*184.5 mm
Outline Dimensions	26520510 mm
Luminance	330 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	80/80/60/80 (Left/Right/Up/Down)
Response Time	30 ms (Typical)
Color Depth	16.2 million colors (100% sRGB)
Backlight	WLED, 50K hours lifespan
Weight	550g (Maximum)
Refresh Rate	60Hz input, 120Hz/240Hz with MEMC
Signal Interface	LVDS (1 channel, 8-bit), 30-pin connector
Operating Voltage	3.3V (Typical)
Operating Temperature	-10°C to 75°C
Storage Temperature	-30°C to 75°C

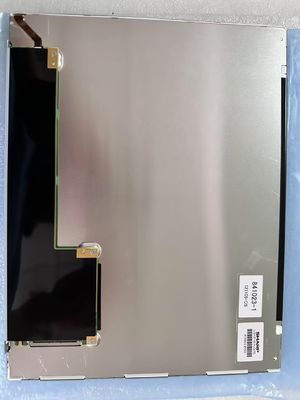

Product Images

Important Note: This model entered mass production in Q1 2011 with final shipments in Q2 2017 and is now discontinued. For current production status and latest specifications, please contact Sharp or their authorized representatives directly. Information provided here is for reference only and should not be used as the sole basis for decision-making.
