Sharp 10.1nch Industrial Lcd panel LQ101K1LY04 1280*800Pixels 149PPI 400cd/M2 40PIN 3.3V

Brand Name:	Sharp
Model Number:	LQ101K1LY04
MOQ:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*800pixels

Style:

40PIN IPS

Brightness:

400CD/M2

Color:

16.7m

Contrast Ratio:

800 :1

Working Life:

20K Hours

Type:

Size:

10.1inch

Lamp Type:

Voltage:

Supply Ability:

3000pcs per week

Highlight:

400cd/M2 Industrial Lcd panel

1280*800Pixels Industrial Lcd panel

LQ101K1LY04 Industrial Lcd panel

Product Description

Sharp 10.1nch Industrial Lcd panel LQ101K1LY04 1280*800Pixels 149PPI 400cd/M2 40PIN 3.3V

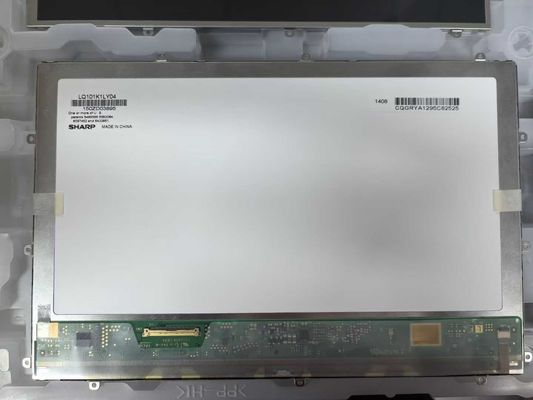

The LQ101K1LY04 is a 10.1 inch diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, Reverse I/F, Glossy . Based on its features, einklcd recommend that this model be applied to Pad & Tablet, Industrial etc. According to the information stored in einklcd this model mass production on Q3, 2012 and last shippment on Q1, 2021, Now this model is discontinued. We inputted this model's specification on Apr 4 2013 for the first time, and the latest update on Aug 10 2023. If you want to embed LQ101K1LY04 LCM in your future product, einklcd strongly recommend that you should contact with Sharp or it's agent to learn lateast production and specification detail. The LQ101K1LY04 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand: Sharp

Model P/N:LQ101K1LY04
Diagonal Size:10.1"

Panel Type:a-Si TFT-LCD, LCM
Resolution 1280(RGB)×800, WXGA 149PPI Pixel

Format :RGB Vertical Stripe
Active Area: 216.96(W)×135.6(H) mm

Bezel Opening 220.56(W)×139.2(H) mm
Outline Size: 237.94(W)×156.66(H) ×5.3(D) mm

Surface Glare (Haze 0%), Reflection 1.25% (Typ.)
Brightness 400 cd/m² (Typ.)

Contrast Ratio: 800:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode: PSV, Normally Black, Transmissive
Best View on Symmetry

Response Time: 25 (Typ.)(Tr+Td)
Display Colors 16.7M 50% NTSC

Lamp Type 7S6P WLED , 20K hours , Without Driver
Frequency 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Screen: Without
Panel Weight: 165/185g (Typ./Max.)

Application: Pad & Tablet Industrial
Signal Interface: LVDS (1 ch, 8-bit) , 40 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -10 ~ 60 °C ;

Storage Temp.: -20 ~ 70 °C
