Sharp 10.4 Inch High Brightness 350cd/m2 Industrial LCD Display with 640*480 Pixels Resolution

Name: Sharp 10.4 Inch High Brightness 350cd/m2 Industrial LCD Display with 640*480 Pixels Resolution
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ104V1DG21
Price: 43.00 USD
Availability: InStock

Brand Name:	sharp
Model Number:	LQ104V1DG21
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262k Colors

Model:

WLED

Style:

Wide Screen High Resolution 640*1480

Brightness:

350cd

Connector:

31pin

Contrast Ratio:

300:1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

Sharp 10.4 Inch High Brightness LCD Display

Product Specifications

Panel Brand	Sharp
Panel Model	LQ104V1DG21
Panel Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)*480, VGA
Pixel Format	RGB Vertical Stripe
Display Area	211.2(W)*158.4(H) mm
Bezel Opening	214.6(W)*162.4(H) mm
Outline Size	265(W)195(H)11.5(D) mm
Surface	Antiglare, Hard coating (3H), Antireflection
Brightness	350 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
Viewing Angle	70/70/40/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View	6 o'clock
Response Time	20/40 (Typ.)(Tr/Td)
Display Colors	262K

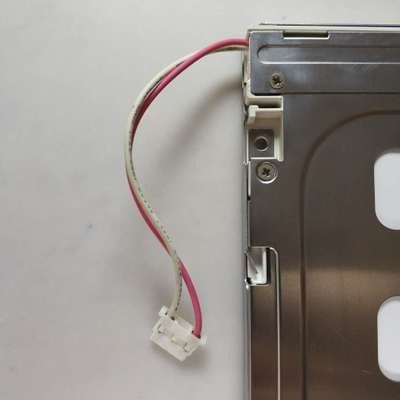

Lamp Type	2 pcs CCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	700g (Max.)

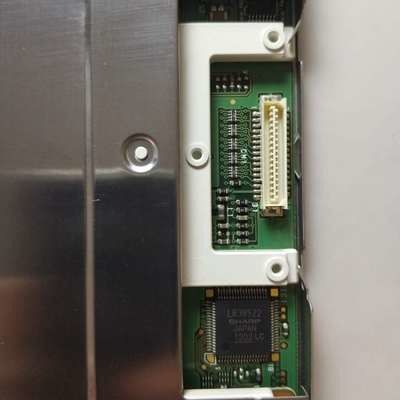

Signal Interface	Parallel RGB (1 ch, 6-bit), 31 pins, Connector
Input Voltage	3.3/5.0V (Typ.)(VCC)
Operating Temperature	-10 ~ 65 °C
Storage Temperature	-30 ~ 70 °C

Product Overview

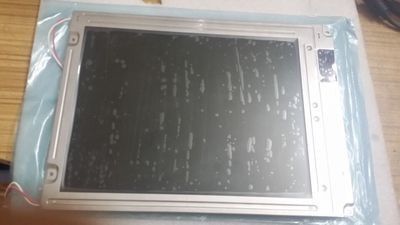

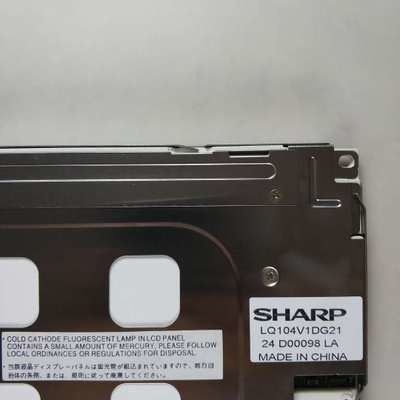

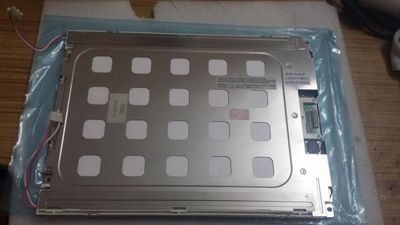

Sharp Corporation LQ104V1DG21 is a 10.4 inch diagonal a-Si TFT-LCD display panel with an integral CCFL backlight system. This industrial-grade display features antiglare surface treatment, landscape orientation, and lamp replacement capability with a rated lifespan of 50,000 hours.

The display operates within a temperature range of -10°C to 65°C and can withstand storage temperatures from -30°C to 70°C, with maximum vibration tolerance of 1.0G (9.8 m/s²).

Important Notice: This model entered mass production in Q3 2002 with last shipment in Q1 2013 and is now discontinued. While 24 units remain available from suppliers, we strongly recommend contacting Sharp or their authorized distributors for the latest production status and specifications before integrating this display into your product designs.

The production status information provided on our website is for reference only and should not be used as the sole basis for decision-making.

Quality Assurance: All our LCD, LED screen, monitor module, and panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
