LG 5.8 Inch 470cd/m2 Industrial LCD Monitor with 40pin Connector for Mercedes A180 Car GPS Navigator

Name: LG 5.8 Inch 470cd/m2 Industrial LCD Monitor with 40pin Connector for Mercedes A180 Car GPS Navigator
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LA058WQ1-SD01
Price: 43.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	LA058WQ1-SD01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262K Colors

Model:

WLED

Style:

Wide Screen High Resolution 400*240

Brightness:

470cd

Connector:

40pin

Contrast Ratio:

900:1

Working Life:

20K Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

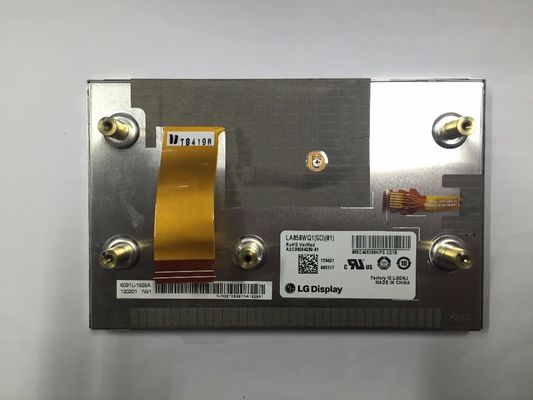

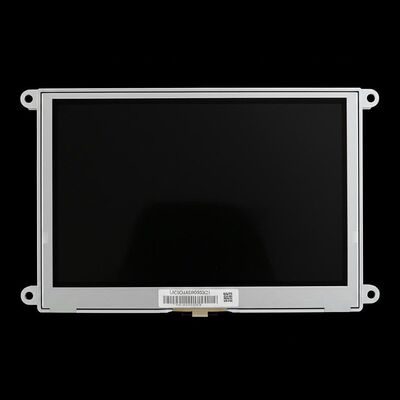

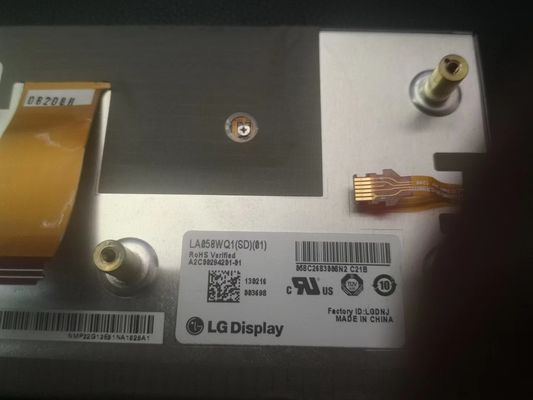

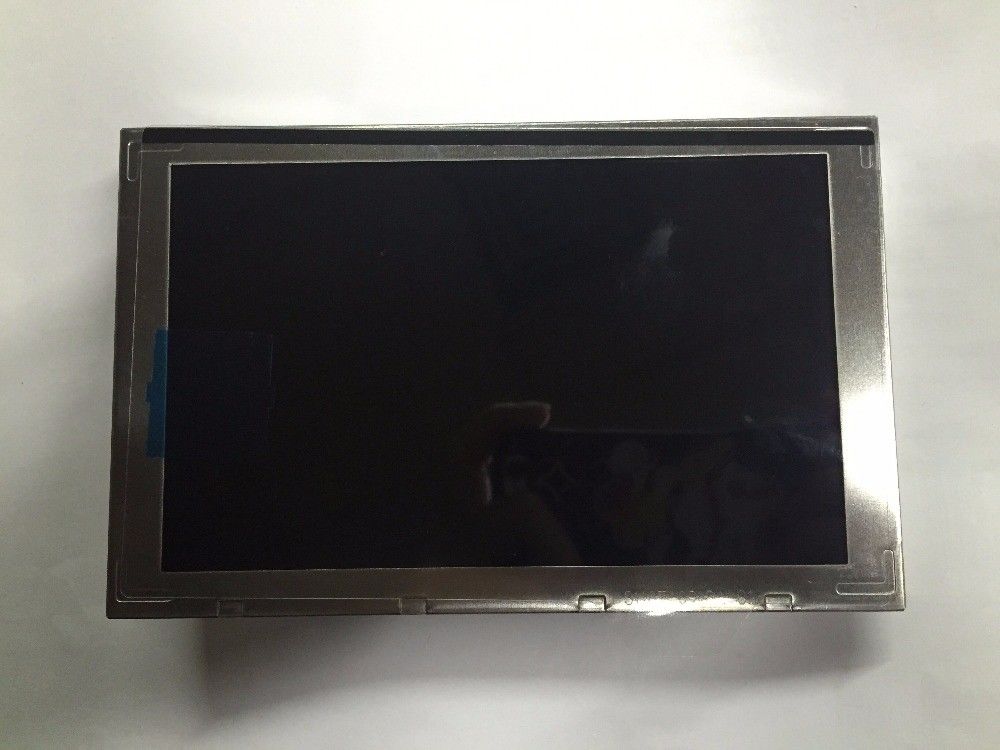

LG 5.8" Industrial LCD Monitor LA058WQ1 SD 01 For Mercedes A180 Car GPS Navigator

Product Overview

High-quality 5.8-inch industrial LCD monitor designed specifically for Mercedes A180 car GPS navigation systems, manufactured by LG Display with robust specifications for automotive applications.

Technical Specifications

Manufacturer: LG Display

Model Name: LA058WQ1-SD01

Screen Size: 5.8 inch

Screen Type: LCM, a-Si TFT-LCD

Resolution: 400(RGB) * 240 (WQVGA)

Pixel Arrangement: RGB Vertical Stripe

Active Area: 126.36 * 75.84 mm (H*V)

Outline Dimensions: 152 * 97 mm (H*V*D)

Bezel Area: 130.8 * 80.3 mm (H*V)

Surface Treatment: Antiglare (Haze 11%), Antireflection

Luminance: 470 cd/m² (Min.)

Contrast Ratio: 900:1 (Typ.)

Viewing Angle: 70/70/30/30 (Typ.)(CR ≥10)

Response Time: 15/10 ms (Typ.)(Tr/Td)

Work Mode: IPS, Normally Black, Transmissive

Color Depth: 262K 63% (CIE1931)

Backlight: 7S1P WLED, 20K hours, No Driver

Weight: 211/216g (Typ./Max.)

Refresh Rate: 60Hz

Touchscreen: Without

Signal Type: Parallel RGB (1 ch, 6-bit), FPC, 40 pins

Voltage Supply: 3.3V (Typ.)

Temperature Range: Storage: -40°C to 105°C, Operating: -40°C to 95°C

Key Features

High brightness 470 cd/m² display for excellent visibility
Wide operating temperature range for automotive environments
Antiglare and antireflection surface treatment
IPS technology for consistent color and wide viewing angles
Long-life WLED backlight with 20,000-hour lifespan
Compact design optimized for Mercedes A180 GPS navigation

Application: Specifically designed for Mercedes A180 Car GPS Navigator systems as an industrial LCD display solution.

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
