| Brand Name: | LG |
| Model Number: | LB048WV1-TL01 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
| Panel Brand |
|---|
| Panel Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Weight |
| LG.Philips LCD |
| 4.8" |
| 800(RGB)×480 , WVGA |
| 103.8(W)×62.28(H) mm |
| 114.65(W)×74.7(H) ×5.88(D) mm |
| 280 cd/m² (Typ.) |
| 65/65/50/50 (Typ.)(CR≥10) |
| - |
| 262K |
| 60Hz |
| 77.0±7.0g |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| LB048WV1-TL01 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 106.8(W)×65.28(H) mm |
| Glare (Haze 0%), Hard coating (3H) |
| 350:1 (Typ.) (TM) |
| TN, Normally White, Transmissive |
| 16 (Typ.)(Tr+Td) |
| 6S2P WLED , With LED Driver |
| 4-wire Resistive Touch, F/G |
|
|
| Signal Interface | LVDS (1 ch, 6-bit) , 30 pins , Connector |
|---|---|
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

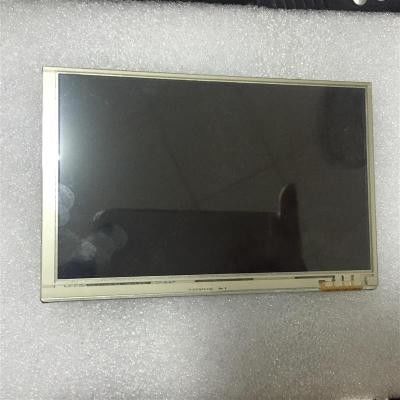

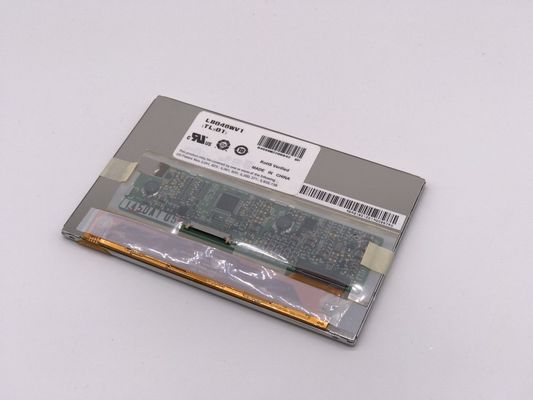

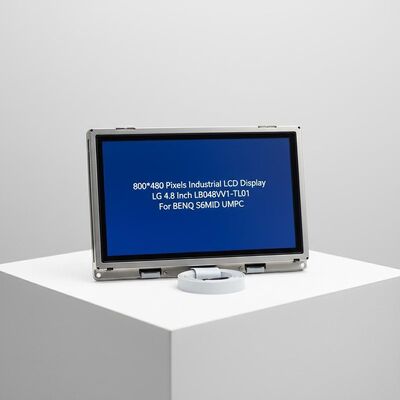

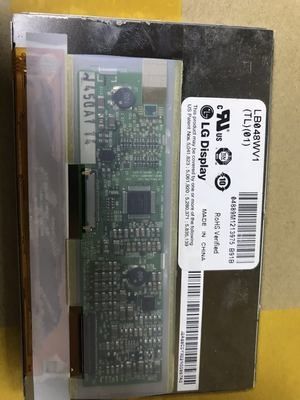

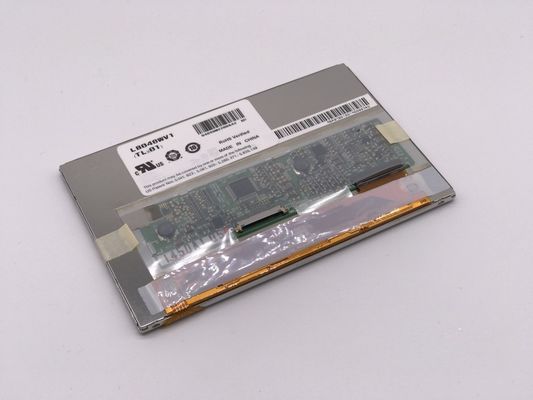

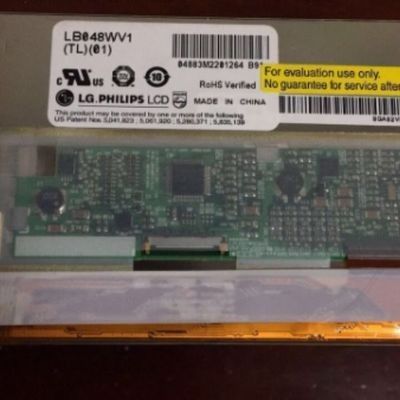

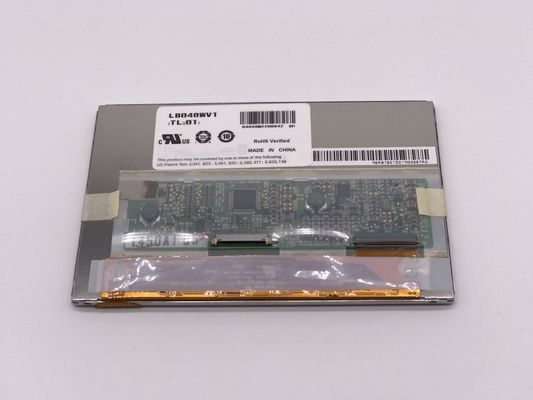

LG.Philips LCD Co., Ltd. (hereafter called LG.Philips LCD) LB048WV1-TL01 (Alias: LB048WV1 (TL)(01)) is a 4.8 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , touchscreen 4-wire Resistive Touch, F/G. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by us in the following: Glare Surface, Landscape type, With Touchscreen, White LED Backlight, Wide Aspect Ratio , 3 in 1 FPC. Based on its features, we recommend that this model be applied to MID UMPC etc. According to the information stored , this model mass production on Q1, 2008, Now this model is discontinued. We inputted this model's specification on Aug 30 2012 for the first time, and the latest update on Jan 22 2017. If you want to embed LB048WV1-TL01 LCM in your future product, we strongly recommend that you should contact with LG.Philips LCD or it's distributor to learn lateast production and specification detail. The LB048WV1-TL01 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
|
