Sharp 10.1inch Industrial LCD Panel LQ101K1LY04 with 1280*800Pixels Resolution and 400cd/M2 Brightness

Sharp 10.1inch Industrial LCD Panel LQ101K1LY04 with 1280*800Pixels Resolution and 400cd/M2 Brightness

Sharp 10.1inch Industrial LCD Panel LQ101K1LY04 with 1280*800Pixels Resolution and 400cd/M2 Brightness

Brand Name: Sharp
Model Number: LQ101K1LY04
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:

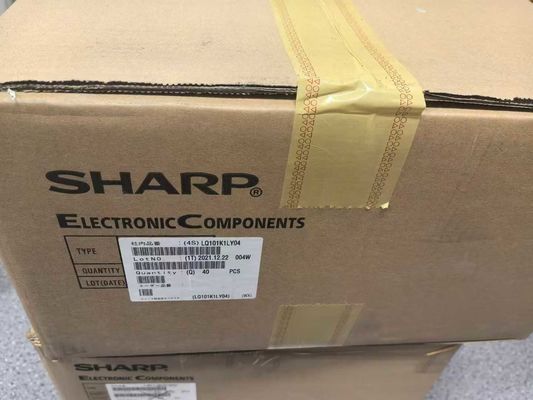

Original Industrial Packing
Resolution:
1280*800pixels
Style:
40PIN IPS
Brightness:
400CD/M2
Color:
16.7m
Contrast Ratio:
800 :1
Working Life:
20K Hours
Type:
Lcm
Size:
10.1inch
Lamp Type:
LCM
Voltage:
3.3V
Packaging Details:
Industrial packing
Highlight:

400cd/M2 Industrial Lcd panel

,

1280*800Pixels Industrial Lcd panel

,

LQ101K1LY04 Industrial Lcd panel

Product Description

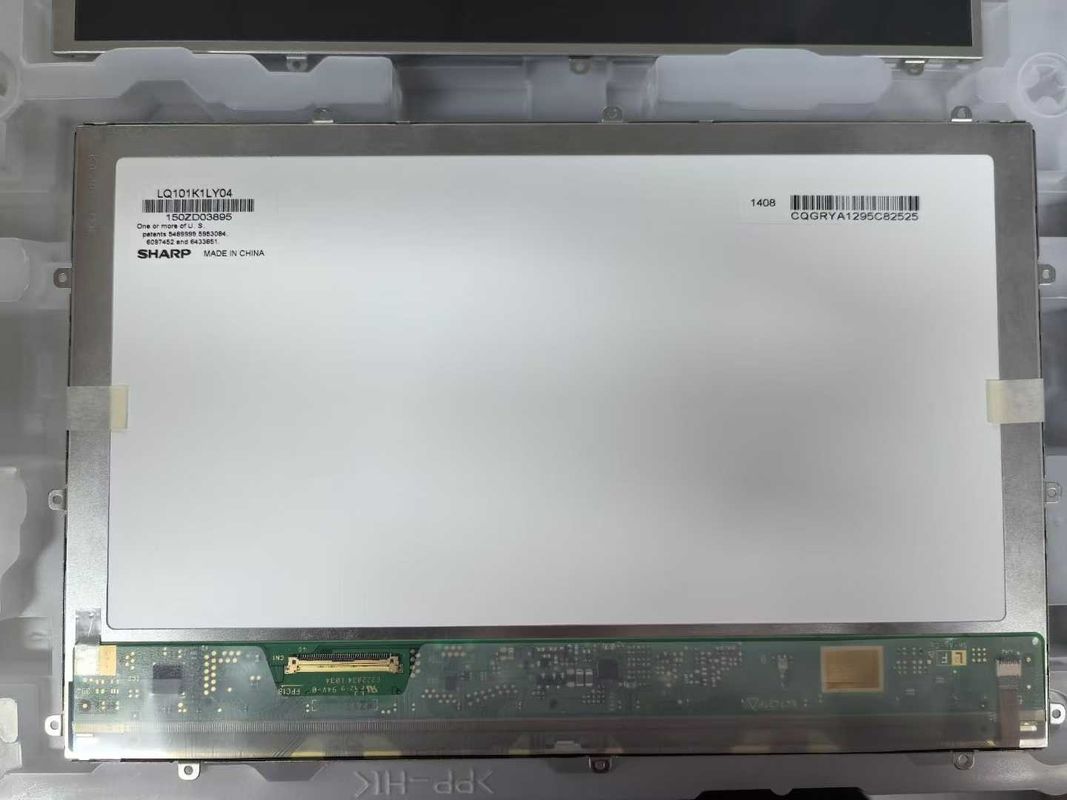

Sharp 10.1-inch Industrial LCD Panel LQ101K1LY04
High-performance 10.1-inch TFT-LCD display panel with 1280*800 resolution, designed for industrial applications and tablet devices.
Note: This model has been discontinued. Last shipment was Q1 2021. Contact Sharp or their agent for latest production and specification details.
Key Specifications
Model Number LQ101K1LY04
Diagonal Size 10.1 inches
Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)*800 (WXGA), 149 PPI
Pixel Format RGB Vertical Stripe
Active Area 216.96(W) * 135.6(H) mm
Brightness 400 cd/m² (Typical)
Contrast Ratio 800:1 (Typical)
Viewing Angle 80/80/80/80 (Left/Right/Up/Down, CR≥10)
Response Time 25 ms (Typical, Tr+Td)
Display Colors 16.7M, 50% NTSC
Signal Interface LVDS (1 ch, 8-bit), 40-pin connector
Input Voltage 3.3V (Typical)
Technical Features
  • WLED backlight system (7S6P configuration)
  • Backlight life: 20,000 hours
  • Display mode: PSV, Normally Black, Transmissive
  • Best view on symmetry
  • Surface: Glare (Haze 0%), Reflection 1.25% (Typical)
  • Without touch screen
  • Without backlight driver
Frequency Options
  • 60Hz standard operation
  • 120Hz with embedded MEMC circuit (60Hz input)
  • 240Hz with embedded MEMC circuit (60Hz input)
  • 120Hz+120Hz: 120Hz panel + 120Hz backlight
Environmental Specifications
Operating Temperature -10°C to 60°C
Storage Temperature -20°C to 70°C
Vibration Resistance Maximal 1.0G (9.8 m/s²)
Panel Weight 165g (Typical) / 185g (Maximum)
Physical Dimensions
Outline Size 237.94(W) * 156.66(H) * 5.3(D) mm
Bezel Opening 220.56(W) * 139.2(H) mm
Recommended Applications
Pad & Tablet, Industrial equipment, and other applications requiring reliable display performance in demanding environments.
Production Information: Mass production started Q3 2012. Specification first entered April 4, 2013; last updated August 10, 2023.
