AUO 32INCH Medical Imaging LCD Panel with 3840*2160 Pixels 850 CCD M2 Brightness and 30K Hours Working Life

Name: AUO 32INCH Medical Imaging LCD Panel with 3840*2160 Pixels 850 CCD M2 Brightness and 30K Hours Working Life
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G320ZAN02.2
Price: 30.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	G320ZAN02.2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

3840*2160pixels

Style:

LCM 51P

Brightness:

850 CCD M2

Color:

1.07B

Contrast Ratio:

1800 :1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

32INCH Medical Imaging LCD Panel

3840*2160Pixels Medical Imaging LCD Panel

High Light Medical Imaging LCD Panel

Product Description

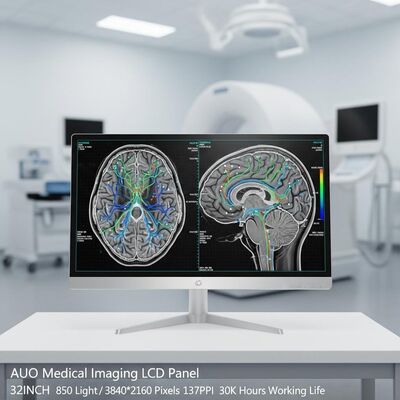

AUO Medical Imaging LCD Panel - 32INCH 850CCD/M2 LCM 51P

High-Performance Medical Display Solution

The G320ZAN02.2 is a premium 32.0-inch industrial LCD panel from AU Optronics Corp., engineered specifically for demanding medical imaging applications. This advanced display features ultra-high definition resolution, exceptional brightness, and professional color accuracy standards.

Key Features

32-inch diagonal a-Si TFT-LCD display with integrated WLED backlight
Ultra HD 3840*2160 resolution at 137 PPI for crystal-clear imaging
High brightness 850 cd/m² with 1800:1 contrast ratio
Professional color gamut: 98% DCI-P3, 99% Adobe RGB, sRGB
Extended 30,000-hour LED backlight lifespan
Advanced viewing angles: 89/89/89/89 (Left/Right/Up/Down)
Multiple refresh rate options including 120Hz and 240Hz with MEMC

Technical Specifications

Model Number

G320ZAN02.2

Panel Type

a-Si TFT-LCD, LCM

Active Area

708.48 * 398.52 mm

Outline Dimensions

727.3 * 424.5 * 20.98 mm

Color Depth

1.07B colors (10-bit)

Signal Interface

eDP (4 Lanes), HBR2, 51-pin connector

Operating Temperature

0°C to 50°C

Storage Temperature

-20°C to 60°C

Weight

4.63 kg (Typical)

Voltage Supply

12.0V (Typical)

Application Areas

This high-performance display is specifically designed for industrial applications, medical imaging systems, and outdoor high-brightness environments where color accuracy and reliability are critical.

Production status information is for reference only. For the latest production details and specifications, please contact AUO or their authorized agents directly.
