BOE NE133QUM-N43 13.3 Inch LCD Panel with 1920*1080 Resolution 580 CCD/M2 Brightness and 9K Hours Working Life

Name: BOE NE133QUM-N43 13.3 Inch LCD Panel with 1920*1080 Resolution 580 CCD/M2 Brightness and 9K Hours Working Life
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NE133QUM-N43
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NE133QUM-N43
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

LCM 40P

Brightness:

580 CCD M2

Color:

16.7M

Contrast Ratio:

1200 :1

Working Life:

9K Hours

Packaging Details:

Industrial packing

Highlight:

1920*1080 LCD Panel

13.3 Inch LCD Panel

NE133QUM-N43 LCD Panel

Product Description

NE133QUM-N43 13.3 Inch LCD Panel

Product Overview

BOE NE133QUM-N43 is a 13.3-inch diagonal Oxide TFT-LCD display panel featuring UHD resolution, WLED backlight system with integrated LED driver, and advanced display technologies. This high-performance panel delivers exceptional image quality with 332 PPI pixel density.

Key Features

13.3-inch Oxide TFT-LCD display with 3840*2160 UHD resolution
100% sRGB color gamut with 1.07 billion display colors
High brightness 580 cd/m² with HDR400 support
Multiple refresh rate options: 60Hz, 120Hz, and 240Hz with MEMC
ADS technology with 1200:1 contrast ratio
eDP 1.4 interface with 40-pin connector
Hard coating surface (3H hardness)
Slim design with PCBA bent (T≤3.0mm)

Technical Specifications

Model NE133QUM-N43

Active Area 293.76 * 165.24 mm

Outline Size 302.76 * 179.55 * 4.68 mm

Pixel Density 332 PPI

Viewing Angle 85/85/85/85 (CR≥10)

Response Time 25ms (Typ.)

Backlight 11S7P WLED, 9K hours

Input Voltage 3.3V (Typ.)

Operating Temp 0°C to 50°C

Storage Temp -20°C to 60°C

Application

Primarily designed for laptop displays, this panel offers premium visual performance for professional and high-end consumer applications.

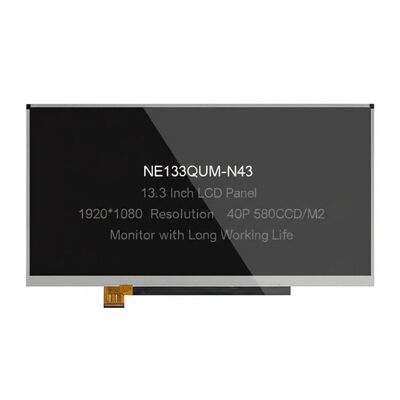

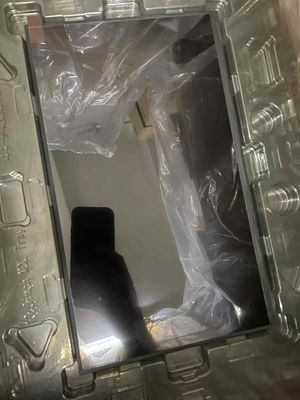

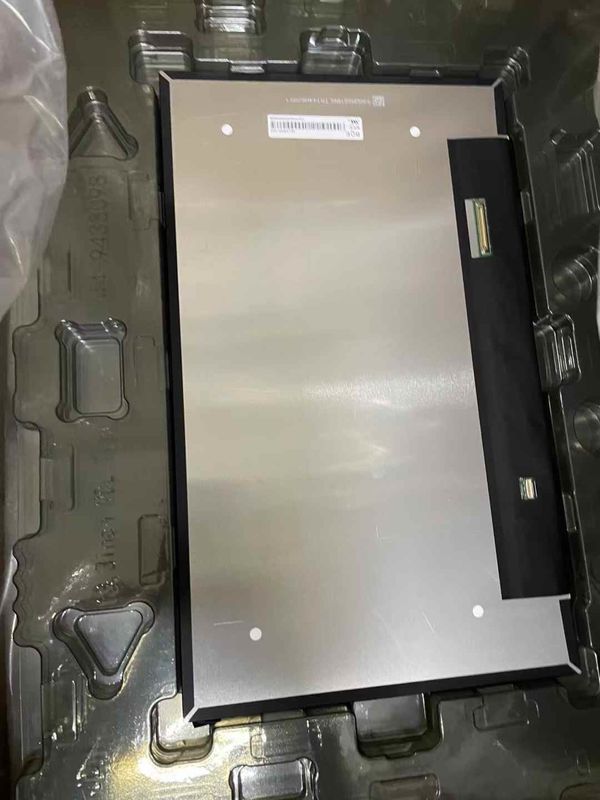

Product Images

Important Notice

This model entered mass production in Q4 2021 and is currently discontinued. For integration into future products, we strongly recommend contacting BOE or their distributors for the latest production status and specification details. Information provided is for reference only and should not be used as the sole basis for decision-making.
