BOE 14.0 Inch Widescreen LCD Monitor with 1920x1080 Resolution 400 cd/m² Brightness and 157 PPI

Name: BOE 14.0 Inch Widescreen LCD Monitor with 1920x1080 Resolution 400 cd/m² Brightness and 157 PPI
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NE140FHM-N46
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NE140FHM-N46
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

WUXGA 31P

Brightness:

400 CCD M2

Color:

16.7M

Contrast Ratio:

1500 :1

Working Life:

15K Hours

Packaging Details:

Industrial packing

Highlight:

Widescreen LCD Computer Monitor

NE140FHM-N46 LCD Computer Monitor

157PPI Widescreen LCD Computer Monitor

Product Description

BOE 30P 400CCD / M2 Widescreen LCD Computer Monitor NE140FHM-N46 157PPI

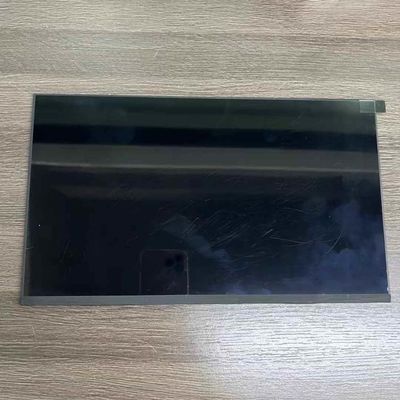

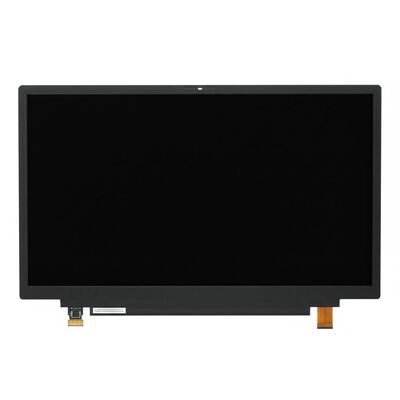

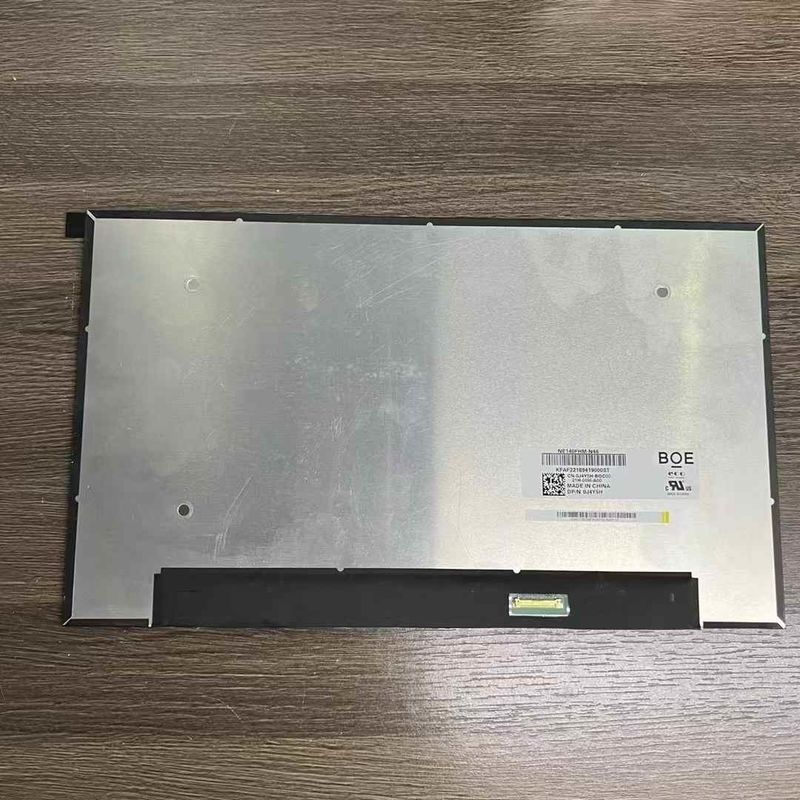

The NE140FHM-N46 (Product Code: BOE0988) is a 14.0-inch diagonal Oxide TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver. This high-resolution display offers exceptional image quality with 157 PPI pixel density, making it ideal for laptop applications.

Key Features

High 157 PPI pixel density for sharp image quality
DCI-P3 and sRGB color gamut support
10-bit color depth displaying 1.07 billion colors
400 cd/m² high luminance
1500:1 contrast ratio
WLED backlight with 15,000-hour lifespan
eDP 1.4 interface with 2 lanes
Antiglare, hard coating (3H) treatment

Technical Specifications

Brand BOE

Model P/N NE140FHM-N46

Diagonal Size 14.0"

Panel Type Oxide TFT-LCD, LCM

Resolution 1920(RGB)*1080, FHD

Active Area 309.312*173.988 mm

Outline Dimensions 314.31*185.09*3.8 mm

Luminance 400 cd/m² (Typ.)

Contrast Ratio 1500:1 (Typ.)

Response Time 30ms (Typ.)

Viewing Angle 85/85/85/85 (CR≥10)

Color Support 1.07B 96% DCI-P3

Interface eDP 1.4, 30 pins

Power Supply 3.3V (Typ.)

Operating Temperature 0 ~ 50°C

Storage Temperature -20 ~ 60°C

Note: This model entered mass production in Q2 2021 and is currently in production. For the latest production status and specification details, we strongly recommend contacting BOE or their authorized agents directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
