BOE 30P NE140FHM-N62 High Resolution Transmissive LCD Monitor with 1920*1080pixels Resolution and 500 CCD M2 Brightness

Name: BOE 30P NE140FHM-N62 High Resolution Transmissive LCD Monitor with 1920*1080pixels Resolution and 500 CCD M2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NE140FHM-N62
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NE140FHM-N62
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

WUXGA 31P

Brightness:

500 CCD M2

Color:

16.7M

Contrast Ratio:

1500 :1

Working Life:

15K Hours

Packaging Details:

Industrial packing

Highlight:

High Resolution Transmissive LCD Computer Monitor

1920*1080pixels LCD Computer Monitor

NE140FHM-N62 LCD Computer Monitor

Product Description

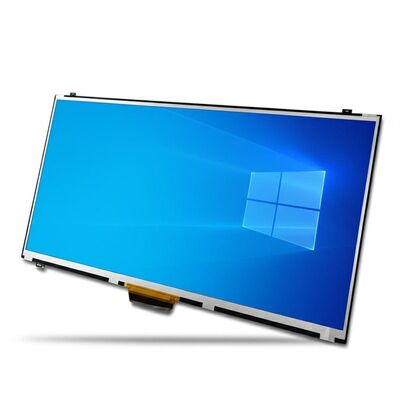

BOE 30P NE140FHM-N62 High Resolution LCD Monitor

The NE140FHM-N62 (Product Code: BOE0988) is a 14.0-inch diagonal Oxide TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver. This transmissive display panel is designed for laptop applications and offers high-resolution performance with professional-grade specifications.

Key Features

14.0-inch diagonal widescreen display
1920*1080 Full HD resolution (157 PPI)
Oxide TFT-LCD technology with ADS operating mode
500 cd/m² typical luminance
1500:1 contrast ratio
96% DCI-P3 color gamut support
eDP 1.4 interface with 30-pin connector
Antiglare hard coating (3H)
WLED backlight with 15,000-hour lifespan

Technical Specifications

Brand	BOE
Model P/N	NE140FHM-N62
Panel Type	Oxide TFT-LCD, LCM
Resolution	1920(RGB)*1080 (FHD)
Active Area	309.312(W)*173.988(H) mm
Outline Dimensions	314.31(H)185.09(V)3.8(D) mm
Viewing Angle	85/85/85/85 (Left/Right/Up/Down)
Response Time	30ms (Typical, Tr+Td)
Frame Rate	60Hz
Interface	eDP (2 Lanes), eDP1.4, HBR1 (2.7G/lane), 30-pin Connector
Power Supply	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Production Status Note: This model entered mass production in Q2 2021 and is currently in production. Specifications were last updated on August 7, 2023. For the latest production and specification details, we recommend contacting BOE or their authorized agents directly.
