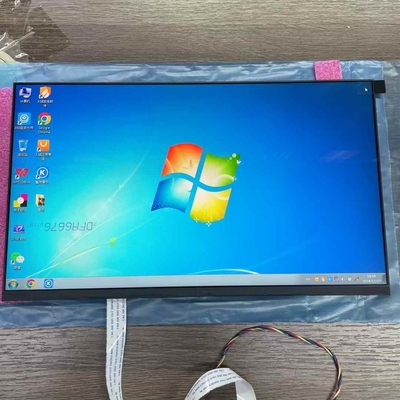

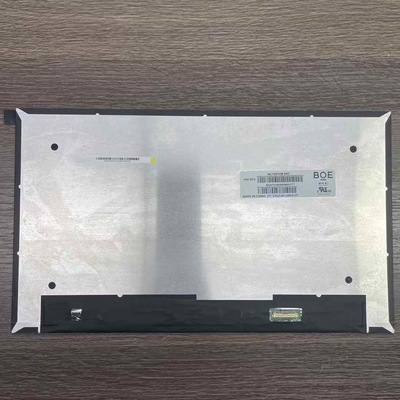

BOE 30P 500CCD / M2 Widescreen LCD Computer Monitor NE140FHM-N62 High Resolution Transmissive

The NE140FHM-N62 (Product Code: BOE0988) is a 14.0 inch diagonal Oxide TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: DCI-P3, sRGB, WLED Backlight, With LED Driver, Reverse I/F, 10 bit, Matte , eDP1.4. Based on its features, einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q2, 2021, Now this model is in production. We inputted this model's specification on Sep 23 2022 for the first time, and the latest update on Aug 7 2023. If you want to embed NE140FHM-N62 LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The NE140FHM-N62 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:BOE

Model P/N:NE140FHM-N62
Diagonal Size:14.0"

Panel Type Oxide TFT-LCD, LCM
Resolution:1920(RGB)×1080, FHD 157PPI Pixel

Format:RGB Vertical Stripe
Active Area:309.312(W)×173.988(H) mm

Bezel Opening-
Outline Dim.:314.31(H)×185.09(V) ×3.8(D) mm

Treatment Antiglare, Hard coating (3H)
Luminance 500 cd/m² (Typ.)

Contrast Ratio:1500:1 (Typ.) (TM)
View Direction Symmetry

Response Time:30 (Typ.)(Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode ADS, Normally Black, Transmissive
Support Color:1.07B 96% DCI-P3

Light Source:WLED [10S6P] , 15K hours , With LED Driver
Form Style: Slim (PCBA Bent, T≤3.0mm)

Designed For:Laptop
Frame Rate: 60Hz

Touch Panel: Without
Interface Type: eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , 30 pins Connector
Power Supply: 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ;

Storage Temperature: -20 ~ 60 °C
