CSOT 15.6inch Digital Signage LCD Monitor with 250cd/m2 Brightness and 1920x1080 Resolution

Name: CSOT 15.6inch Digital Signage LCD Monitor with 250cd/m2 Brightness and 1920x1080 Resolution
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: MG1561B01-6
Price: 30.00 USD
Availability: InStock

Brand Name:	CSOT
Model Number:	MG1561B01-6
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

250ccd/m2

Resolution:

1920*1080pixels

Contrast Ratio:

3000:1

Color:

16.7M

Working Life:

15k Hours

Connector:

40P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

15.6inch digital signage LCD Monitor

MG1561B01-6 LCD Monitor

40PIN digital signage LCD Monitor

Product Description

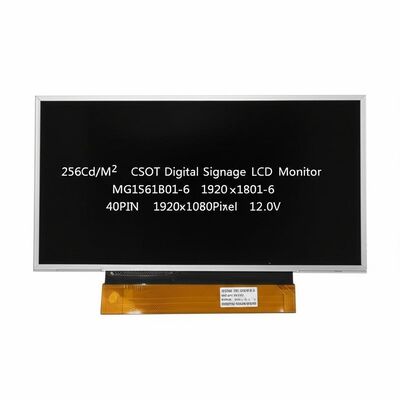

CSOT 15.6-inch Digital Signage LCD Monitor MG1561B01-6

The MG1561B01-6 is a 15.6-inch diagonal a-Si TFT-LCD display panel from China Star Optoelectronics Technology Co., Ltd (CSOT). This professional-grade digital signage monitor features an integrated WLED backlight system with LED driver, delivering Full HD resolution with excellent clarity and color reproduction.

Key Features

• 15.6-inch Full HD display (1920*1080 resolution)
• High brightness 250 cd/m² with 3000:1 contrast ratio
• Wide viewing angles: 89/89/89/89 (CR≥10)
• VA panel technology with normally black operation
• 72% NTSC color gamut supporting 16.7 million colors
• LVDS interface with 40-pin connector
• Designed for digital signage applications

Technical Specifications

Brand	CSOT
Model Number	MG1561B01-6
Diagonal Size	15.6 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080 (FHD), 141 PPI
Active Area	344.16mm * 193.59mm
Outline Dimensions	351.86mm * 206.332mm * 6.31mm
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typical)
Contrast Ratio	3000:1 (Typical)
Response Time	30ms (Typical, Tr+Td)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Operating Mode	VA, Normally Black, Transmissive
Color Support	16.7 million colors, 72% NTSC
Backlight	WLED [9S6P], 15,000 hours, With LED Driver
Weight	530g (Typical)
Frame Rate	60Hz
Touch Panel	Without touch screen
Interface	LVDS (2 channel, 8-bit), 40-pin connector
Power Supply	12.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Note: Mass production began in Q1 2022. For the latest production status and detailed specifications, we recommend contacting CSOT or their authorized agents directly. The information provided is for reference only and should not be used as the sole basis for decision-making.
