12.5 Inch Laptop Monitor LCD Panel with 1920*1080pixels Resolution and 600 Cd/M2 Brightness

Name: 12.5 Inch Laptop Monitor LCD Panel with 1920*1080pixels Resolution and 600 Cd/M2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV125FHM-N82
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV125FHM-N82
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

Black Or Silver,16.7M Color For Display

Model:

WLED,LCD

Style:

1920*1080pixels

Contrast Ratio:

600:1

Type:

Lcm

Working Voltage:

3.3V

Size:

12.5inch

Working Life:

12khours

Packaging Details:

Industrial packing

Highlight:

Lcd Panel NV125FHM-N82

12.5 Inch laptop Monitor lcd panel

30Pin laptop Monitor lcd panel

Product Description

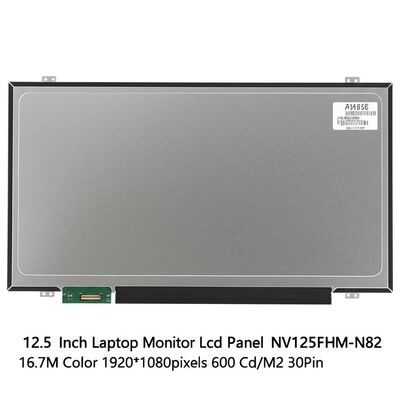

12.5 Inch Laptop Monitor LCD Panel NV125FHM-N82

The NV125FHM-N82 (Product Code: BOE0691) is a 12.5-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver. This panel operates within a temperature range of 0~50°C and stores safely at -20~60°C.

Key features include WLED backlight technology, integrated LED driver, reverse interface, and matte surface treatment. This model is specifically recommended for laptop applications and has been in production since Q4 2015.

Technical Specifications

Brand	BOE
Model P/N	NV125FHM-N82
Diagonal Size	12.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080, FHD 176PPI
Pixel Format	RGB Vertical Stripe
Active Area	276.48(W)*155.52(H) mm
Outline Dimensions	282.4 * 179.32 * 2.6 (HVD) mm
Surface Treatment	Antiglare
Luminance	300 cd/m² (Typical)
Contrast Ratio	600:1 (Typical)
Viewing Angle	85/85/85/85 (Typical, CR≥10)
Response Time	30ms (Typical, Tr+Td)
Display Mode	ADS, Normally Black, Transmissive
Color Depth	16.7M colors, 50% NTSC
Backlight System	9S3P WLED, 15K hours lifespan, With LED Driver
Outline Shape	Slim (PCBA Flat, T≤3.2mm)
Refresh Rate	60Hz
Touchscreen	Without
Signal Interface	eDP (2 Lanes), RBR (1.62G/lane), 30-pin Connector
Voltage Supply	3.3V (Typical)
Temperature Ratings	Storage: -20~60°C, Operating: 0~50°C

Note: Production status information is provided for reference only and should not be used as the sole basis for decision-making. For the latest production and specification details, we recommend contacting BOE or their authorized agents directly.
