Innolux 34Inch 300CD/M2 3440*1440pixels 30PIN Gaming LCD Panel M340AJJ-K1N Desktop Monitor Panel

Name: Innolux 34Inch 300CD/M2 3440*1440pixels 30PIN Gaming LCD Panel M340AJJ-K1N Desktop Monitor Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M340AJJ-K1N
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	M340AJJ-K1N
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

300CD/M2

Connector:

30PIN

Color:

1.07B

Contrast Ratio:

3000:1

Working Life:

40K Hours

Resolution:

3440*1440pixels

Voltage Supply:

12V

Signal Type:

EDP

Packaging Details:

Industrial packing

Highlight:

Innolux Desktop Monitor Panel

M340AJJ-K1N Desktop Monitor Panel

109PPI Gaming LCD Panel

Product Description

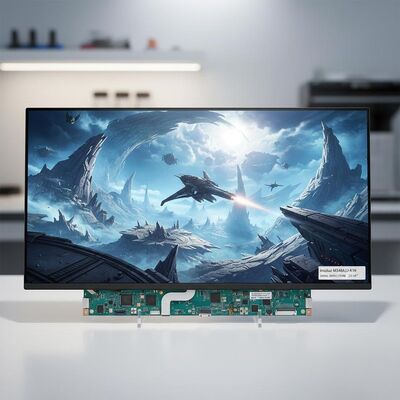

Innolux 34-Inch Desktop Monitor Panel M340AJJ-K1N

The Innolux M340AJJ-K1N is a high-performance 34-inch diagonal TFT-LCD display panel designed for desktop monitors and gaming applications. Featuring a 3440*1440 resolution with 109 PPI, this panel delivers exceptional visual clarity and immersive gaming experiences.

Key Features

34-inch diagonal display with 3440*1440 resolution
300 cd/m² typical luminance for bright, clear images
109 PPI pixel density for sharp text and graphics
AMD FreeSync technology for smooth gaming
10-bit color support with 72% NTSC color gamut
75Hz maximum refresh rate with multiple frame rate options
TCO 7.0 compliance for environmental standards
Matte anti-glare surface with hard coating (3H)

Technical Specifications

Specification	Details
Model	M340AJJ-K1N
Display Type	a-Si TFT-LCD with VA technology
Active Area	799.8mm (H) * 334.8mm (V)
Contrast Ratio	3000:1 (Typical)
Response Time	20/5ms (Typical Tr/Td)
Viewing Angle	89/89/89/89 (CR≥10) Left/Right/Up/Down
Interface	V-by-One 8 lane 51 pins Connector
Power Supply	12.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Weight	3.68/4.09/4.30 kg (Min./Typ./Max.)

Frame Rate Options

60Hz standard operation
120Hz with embedded MEMC circuit (60Hz input)
120Hz+120Hz: 120Hz panel + 120Hz backlight
240Hz with embedded MEMC circuit (60Hz input)

Important Note: This product information is provided for reference only. For the latest production status and detailed specifications, please contact Innolux or their authorized distributors before making any purchasing decisions.
