BOE 10.1 inch LCD Panel BP101WX1-300 with 1280*800 Pixels and 450cd/m² Brightness for Tablet Displays

Name: BOE 10.1 inch LCD Panel BP101WX1-300 with 1280*800 Pixels and 450cd/m² Brightness for Tablet Displays
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: BP101WX1-300
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	BP101WX1-300
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*800PIXELS

Brightness:

450cd

Connector:

45PIN

Working Time:

30k Hours

Input Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

149PPI Pad Tablet Lcd Panel

BOE WLED Tablet Lcd Panel

450cd/M2 Touch Screen Computer Monitor

Product Description

149PPI Pad Tablet LCD Panel BP101WX1-300

Product Overview

BOE 10.1-inch Pad & Tablet LCD panel BP101WX1-300 with 1280*800 resolution, 149PPI pixel density, and 450 cd/m² brightness. Features 3.3V power supply and 45-pin interface.

Technical Specifications

Manufacturer: BOE Technology Group Co., Ltd.
Display Size: 10.1 inch diagonal
Technology: a-Si TFT-LCD
Resolution: 1280 * 800 pixels
Pixel Density: 149 PPI
Brightness: 450 cd/m²
Backlight: Integrated WLED system
Interface: 45-pin, Reverse I/F
Surface: Glossy finish
Operating Temperature: -20°C to 65°C
Storage Temperature: -40°C to 85°C

Application & Compatibility

This LCD panel is specifically designed for pad and tablet applications, offering optimal performance for portable computing devices.

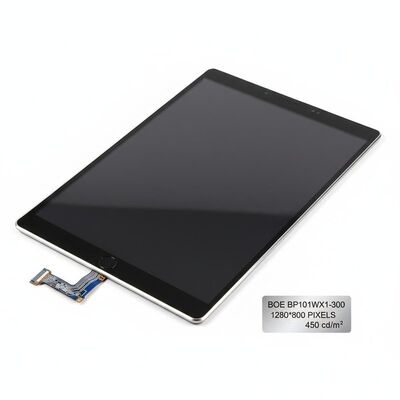

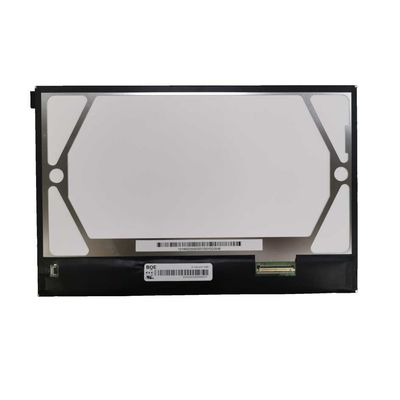

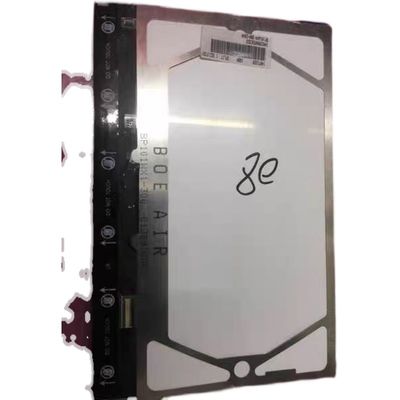

Product Image

Production Status Note: This model entered mass production in Q2 2012 and is currently in production. For the most current production status and detailed specifications, we recommend contacting BOE or their authorized agents directly. Information provided here is for reference only and should not be used as the sole basis for decision-making.
