Product Details:
Payment & Shipping Terms:
|
Quality: | Brand New Original | Package: | Original Industrial Packing |
---|---|---|---|
Material: | Glass Oled | Color: | 16.7M Colors |
Model: | WLED | Style: | Wide Screen High Resolution 1280*800PIXELS |
Brightness: | 450cd | Connector: | 45PIN |
Working Time: | 30k Hours | Input Voltage: | 3.3V |
High Light: | 149PPI Pad Tablet Lcd Panel,BOE WLED Tablet Lcd Panel,450cd/M2 Touch Screen Computer Monitor |

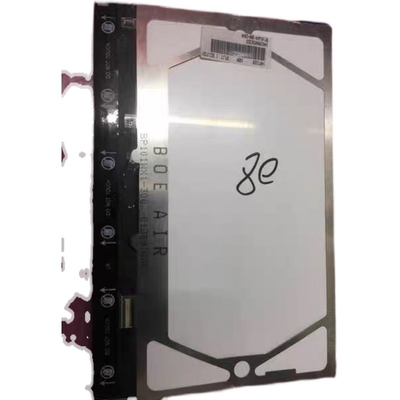

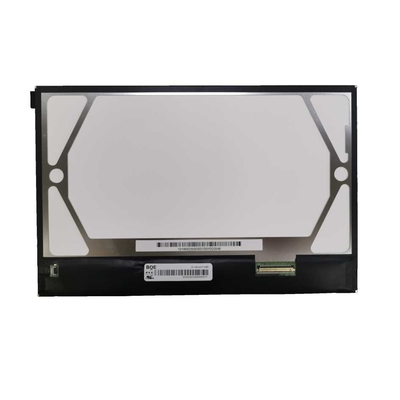

BOE 10.1inch Pad& Tablet lcd panel BP101WX1-300 1280*800pixels 149PPI 450 cd/m² 3.3V 45Pin2
The BP101WX1-300 is a 10.1 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 65°C , a storage temperature range of -40 ~ 85°C . It's general features are summarized by Einklcd in the following: WLED Backlight, Reverse I/F, Glossy . Based on its features, einklcd recommend that this model be applied to Pad & Tablet etc. According to the information stored in einklcd this model mass production on Q2, 2012, Now this model is in production. We inputted this model's specification on Apr 9 2013 for the first time, and the latest update on May 17 2021. If you want to embed BP101WX1-300 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The BP101WX1-300 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
