18.4 Inch Laptop LCD Screen with 1920×1080 FHD Resolution and 350cd/m² Brightness

Name: 18.4 Inch Laptop LCD Screen with 1920×1080 FHD Resolution and 350cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: CLAA184FP01
Price: 30.00 USD
Availability: InStock

Brand Name:	CPT
Model Number:	CLAA184FP01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.2M Colors

Model:

LCM

Style:

Wide Screen High Resolution 1920*1080PIXELS

Brightness:

350cd

Connector:

40PIN

Contrast Ratio:

800:1

Working Time:

15k Hours

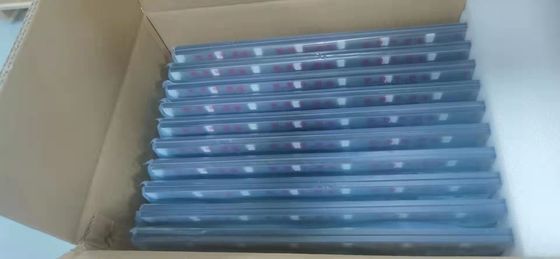

Packaging Details:

Industrial packing

Highlight:

CPT Laptop Lcd Screen

18.4" CPT Laptop Lcd Screen

119PPI Laptop Monitor Screen

Product Description

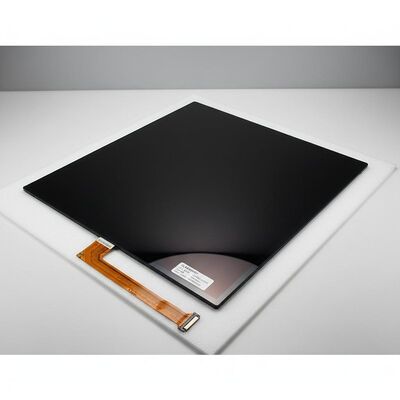

18.4" CPT Laptop LCD Screen - CLAA184FP01

This 18.4-inch diagonal CPT CLAA184FP01 LCD display panel features a 1920*1080 Full HD resolution with 119 PPI pixel density. The screen delivers 350 cd/m² brightness and 800:1 contrast ratio with wide 89/89/89/89 viewing angles.

Key Features

18.4-inch diagonal display area
1920(RGB)*1080 Full HD resolution (119 PPI)
350 cd/m² brightness with WLED backlight
800:1 contrast ratio with HFFS display mode
Wide 89/89/89/89 viewing angles (CR≥10)
LVDS interface with 40-pin connector
3.3V operating voltage
Glare surface finish

Technical Specifications

Panel Brand	Chunghwa Picture Tubes (CPT)
Panel Model	CLAA184FP01
Panel Size	18.4 inches
Resolution	1920(RGB)*1080 (FHD, 119PPI)
Display Area	408.96mm * 230.04mm
Outline Dimensions	422.5mm * 248mm * 6.3mm
Brightness	350 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Display Colors	16.2 million (60% NTSC)
Response Time	40ms (Typical, Tr+Td)
Signal Interface	LVDS (2 channel, 8-bit), 40-pin connector
Input Voltage	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Important Note: This CPT CLAA184FP01 model entered mass production in Q1 2013 and is now discontinued. For current production status and latest specifications, please contact CPT or their authorized distributors directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
