| Brand Name: | CPT |
| Model Number: | CLAA184FP01 |
| MOQ: | 10pcs |
| Price: | Negotiation |

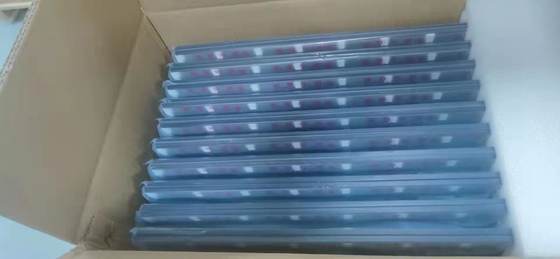

| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

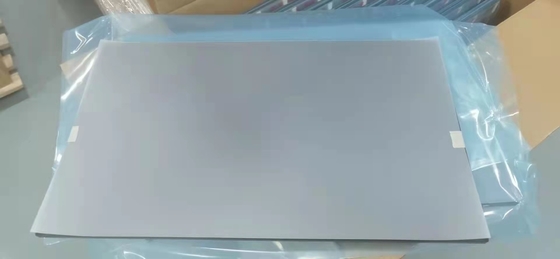

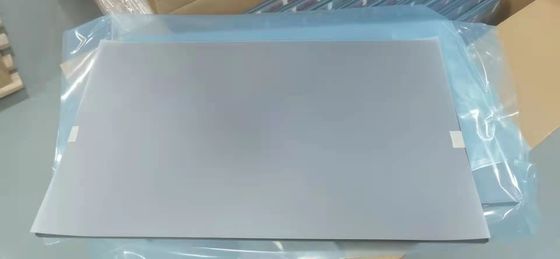

350cd/M2 CPT 18.4" Laptop Lcd Screen 119PPI 1920(RGB)×1080 FHD 40PIN 3.3V CLAA184FP01 Laptop monitor screen
Chunghwa Picture Tubes, LTD. (hereafter called CPT) CLAA184FP01 is a 18.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: WLED Backlight, Glossy . Based on its features, Einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q1, 2013, Now this model is discontinued. We inputted this model's specification on Jun 17 2013 for the first time, and the latest update on Apr 15 2020. If you want to embed CLAA184FP01 LCM in your future product, einklcd strongly recommend that you should contact with CPT or it's distributor to learn lateast production and specification detail. The CLAA184FP01 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
| Panel Brand |
|---|
| Panel Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Shape Style |
| CPT |
| 18.4" |
| 1920(RGB)×1080, FHD, 119PPI |
| 408.96(W)×230.04(H) mm |
| 422.5(W)×248(H) ×6.3(D) mm |
| 350 cd/m² (Typ.) |
| 89/89/89/89 (Typ.)(CR≥10) |
| Symmetry |
| 16.2M 60% NTSC |
| 60Hz |
| Wedge (PCBA Bent, T≥5.2mm) |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| CLAA184FP01 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 413.11(W)×234.24(H) mm |
| Glare (Haze 0%) |
| 800:1 (Typ.) (TM) |
| HFFS, Normally Black, Transmissive |
| 40 (Typ.)(Tr+Td) |
| WLED , 15K hours , Without Driver |
| Without |
| Signal Interface | LVDS (2 ch, 8-bit) , 40 pins Connector |
|---|---|
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
|
|
