Sharp 13.3" Laptop LCD Screen with 330cd/m² Brightness 1920x1080 FHD Resolution and 10k Hours Lifespan

Name: Sharp 13.3" Laptop LCD Screen with 330cd/m² Brightness 1920x1080 FHD Resolution and 10k Hours Lifespan
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ133M1JW02
Price: 30.00 USD
Availability: InStock

Brand Name:	sharp
Model Number:	LQ133M1JW02
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080PIXELS

Brightness:

330cd

Connector:

30PIN

Contrast Ratio:

1000:1

Working Time:

10k Hours

Input Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

Sharp 13.3" Laptop Lcd Screen

330cd/M2 Laptop Lcd Screen

166PPI Computer Gaming Monitor

Product Description

Sharp 13.3" Laptop LCD Screen LQ133M1JW02

High-quality 13.3" FHD Oxide TFT-LCD display panel from Sharp featuring 1920*1080 resolution, 330 cd/m² brightness, and 166 PPI for exceptional clarity and color reproduction.

Product Overview

The LQ133M1JW02 (Product Code: SHP141A) is a 13.3-inch diagonal Oxide TFT-LCD display panel with integrated WLED backlight system and LED driver. This panel features eDP1.3 interface and is designed for Toshiba Portege Z30 Notebook applications.

Key Features

13.3" FHD Resolution: 1920(RGB)*1080 with 166 PPI density
High Brightness: 330 cd/m² typical luminance
Wide Color Gamut: 16.7 million colors with 100% sRGB coverage
IPS Technology: Wide viewing angles (89/89/89/89)
Long Life Backlight: WLED with 10,000 hours lifespan
Integrated LED Driver: Simplified power management
Antiglare Treatment: Hard coating (3H) for durability
eDP Interface: eDP1.3 with 30-pin connector

Technical Specifications

Brand	Sharp
Model	LQ133M1JW02 (SHP141A)
Display Type	Oxide TFT-LCD, LCM
Active Area	293.76(H) * 165.24(V) mm
Outline Dimensions	305.2(H) * 188.1(V) * 2.85(D) mm
Contrast Ratio	1000:1 (Typical)
Response Time	25ms (Typical, Tr+Td)
Operating Mode	IPS, Normally Black, Transmissive
Frame Rate	60Hz
Interface	eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane), 30-pin Connector
Power Supply	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Surface Treatment	Antiglare, Hard coating (3H)
Touch Panel	Without touch screen

Application Information

This display panel is specifically designed for laptop applications, particularly compatible with Toshiba Portege Z30 Notebook. The slim form factor (PCBA Flat, T≤3.2mm) makes it ideal for space-constrained mobile computing devices.

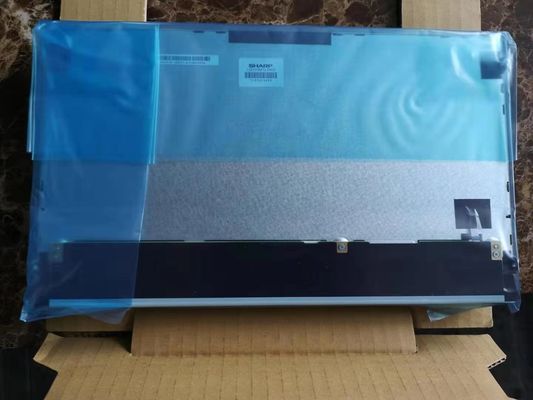

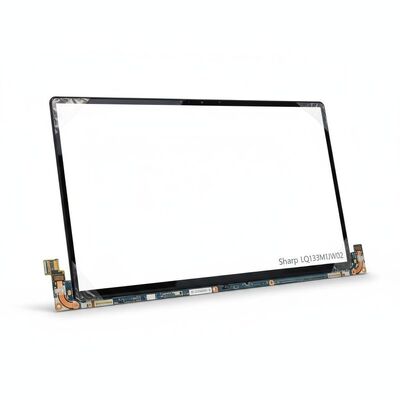

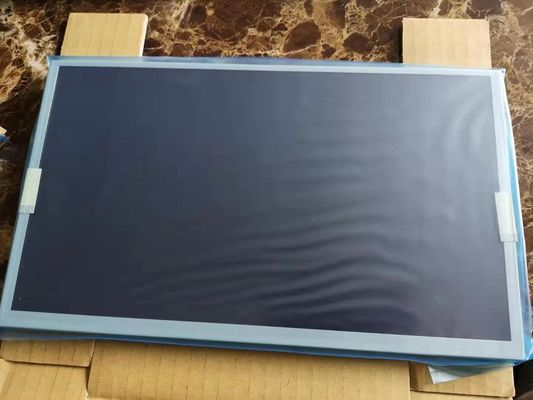

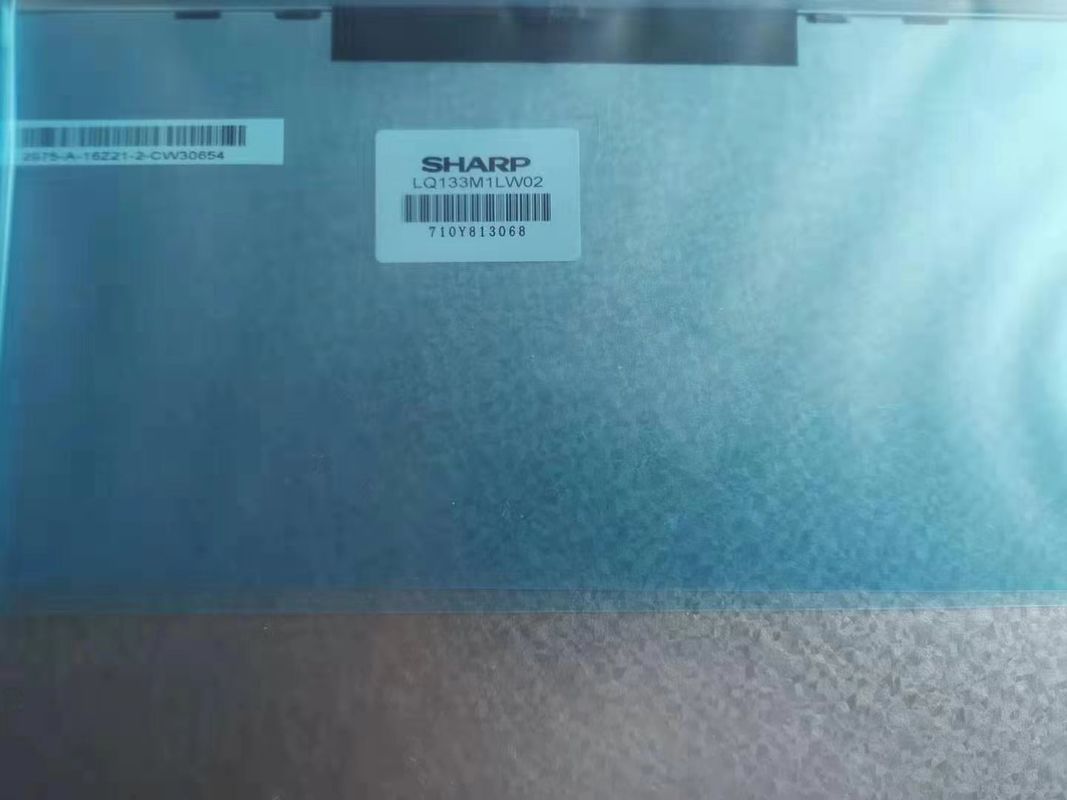

Product Images

Production Status Note: This model entered mass production in Q4 2013 and is currently in production. For the latest production status and specification details, we strongly recommend contacting Sharp or their authorized agents before integrating this display into your products.
