330cd/M2 Sharp 13.3" Laptop Lcd Screen 166PPI 3.3V LQ133M1JW02

330cd/M2 Sharp 13.3" Laptop Lcd Screen 166PPI 3.3V LQ133M1JW02
330cd/M2 Sharp 13.3" Laptop Lcd Screen 166PPI 3.3V LQ133M1JW02 330cd/M2 Sharp 13.3" Laptop Lcd Screen 166PPI 3.3V LQ133M1JW02 330cd/M2 Sharp 13.3" Laptop Lcd Screen 166PPI 3.3V LQ133M1JW02

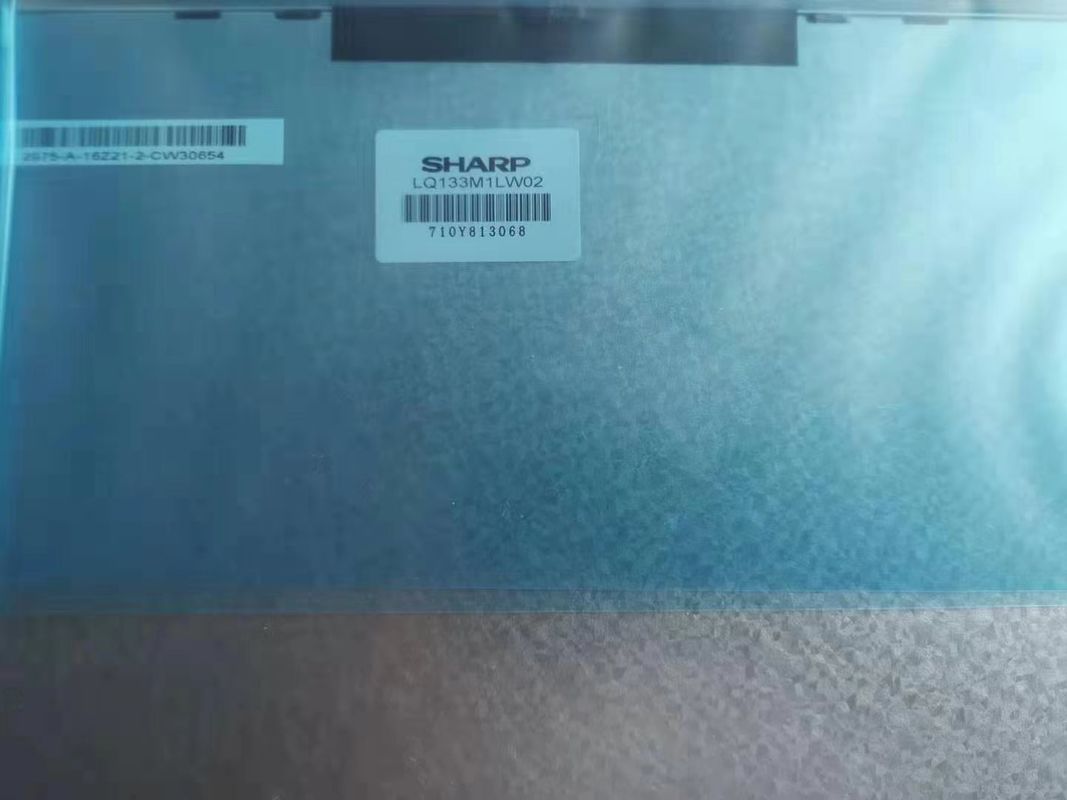

Large Image :  330cd/M2 Sharp 13.3" Laptop Lcd Screen 166PPI 3.3V LQ133M1JW02

Product Details:
Place of Origin: China
Brand Name: sharp
Certification: Rohs,CE,FCC
Model Number: LQ133M1JW02
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

330cd/M2 Sharp 13.3" Laptop Lcd Screen 166PPI 3.3V LQ133M1JW02

Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7M Colors
Model: WLED Style: Wide Screen High Resolution 1920*1080PIXELS
Brightness: 330cd Connector: 30PIN
Contrast Ratio: 1000:1 Working Time: 10k Hours
Input Voltage: 3.3V
High Light:

Sharp 13.3" Laptop Lcd Screen

,

330cd/M2 Laptop Lcd Screen

,

166PPI Computer Gaming Monitor

sharp 13.3" laptop screen lcd LQ133M1JW02 1920(RGB)×1080 [FHD] 166PPI 3.3V 330 cd/m² 16.7M 10k hours life led driver



LQ133M1JW02 (Product Code: SHP141A) is a 13.3" diagonal Oxide TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by EINKLCD in the following: sRGB, WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.3; for Toshiba Portege Z30 Notebook. Based on its features, EINKLCD recommend that this model be applied to Laptop etc. According to the information stored in EINLCD this model mass production on Q4, 2013, Now this model is in production. We inputted this model's specification on Feb 2 2015 for the first time, and the latest update on Mar 10 2020. If you want to embed the LCM in your future product, EINKLCD strongly recommend that you should contact with Sharp or it's agent to learn lateast production and specification detail of LQ133M1JW02. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.





  • Brand
    Sharp
  • Model
    LQ133M1JW02 (SHP141A)
  • Diagonal Size
    13.3 inch
  • Type
    Oxide TFT-LCD, LCM
  • Pixel Format
    1920(RGB)×1080 [FHD] 166PPI
  • Configuration
    RGB Vertical Stripe
  • Active Area
    293.76(H)×165.24(V) mm
  • Outline Dim.
    305.2(H)×188.1(V) ×2.85(D) mm
  • Bezel Area
    -
  • Treatment
    Antiglare, Hard coating (3H)
  • Luminance
    330 cd/m² (Typ.)
  • Contrast Ratio
    1000:1 (Typ.) (TM)
  • View Direction
    Symmetry
  • Response Time
    25 (Typ.)(Tr+Td)
  • Viewing Angle
    89/89/89/89 (Typ.)(CR≥10)
  • Operating Mode
    IPS, Normally Black, Transmissive
  • Support Color
    16.7M 100% sRGB
  • Light Source
    WLED [8S8P] , 10K hours , With LED Driver
  • Form Style
    Slim (PCBA Flat, T≤3.2mm)
  • Designed For
    330cd/M2 Sharp 13.3" Laptop Lcd Screen 166PPI 3.3V LQ133M1JW02 0
  • Frame Rate
    60Hz
  • Touch Panel
    Without
  • Interface Type
  • eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector
  • Power Supply
  • 3.3V (Typ.)
  • Environment
  • Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

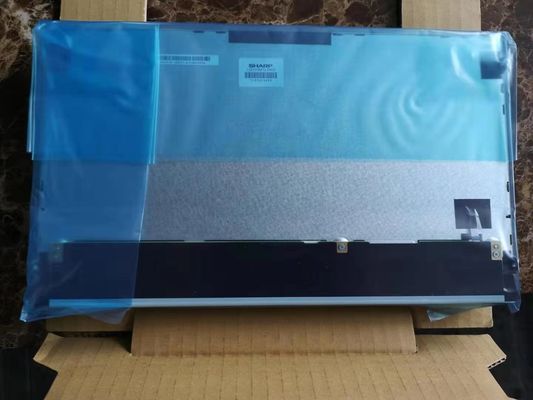

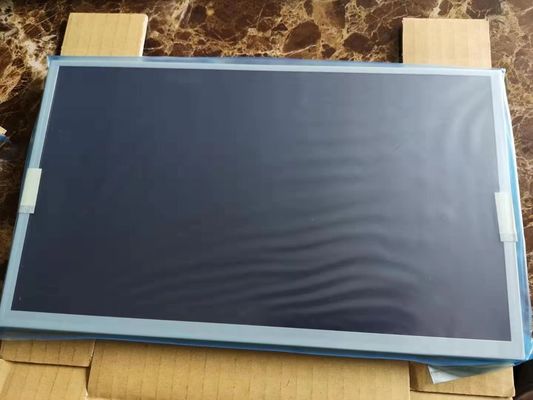

330cd/M2 Sharp 13.3" Laptop Lcd Screen 166PPI 3.3V LQ133M1JW02 1330cd/M2 Sharp 13.3" Laptop Lcd Screen 166PPI 3.3V LQ133M1JW02 2
