32 Inch AUO Digital Signage Display with 500cd/m² Brightness and 1920x1080 FHD Resolution

Name: 32 Inch AUO Digital Signage Display with 500cd/m² Brightness and 1920x1080 FHD Resolution
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: P320HVN02.0
Price: 30.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	P320HVN02.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.07B Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080PIXELS

Brightness:

500cd

Connector:

51PIN

Contrast Ratio:

3000:1

Working Time:

50k Hours

Input Voltage:

12V

Signal Type:

LVDS

Packaging Details:

Industrial packing

Highlight:

500cd/M2 AUO Digital Signage Display

69PPI AUO Digital Signage Display

P320HVN02.0

Product Description

32 Inch 69PPI 500cd/m² AUO Digital Signage Display P320HVN02.0

High-performance 32-inch AUO digital signage LCD display screen model P320HVN02.0 featuring 1920*1080 Full HD resolution, 500 cd/m² brightness, and 69 PPI pixel density. This 51-pin display operates at 12V and is engineered for reliable digital signage applications.

Product Overview

The P320HVN02.0 is a 32.0-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp. featuring an integrated WLED backlight system with LED driver. This display operates within a temperature range of 0~50°C and withstands vibration levels up to 1.0G (9.8 m/s²). Designed for digital signage applications, it offers excellent color reproduction with sRGB coverage and supports both landscape and portrait orientations.

Key Features

32-inch Full HD display with 69 PPI pixel density
High brightness of 500 cd/m² for clear visibility
3000:1 contrast ratio with AMVA3 technology
16.7 million colors with 99% sRGB coverage
WLED backlight with 50,000-hour lifespan
Wide viewing angles of 89/89/89/89
Matte finish with anti-glare and hard coating (3H)
LVDS interface with 51-pin connector

Technical Specifications

Manufacturer	AUO
Model Name	P320HVN02.0
Screen Size	32.0 inch
Screen Type	LCM, a-Si TFT-LCD
Resolution	1920(RGB)*1080 (FHD) 69PPI
Active Area	698.4 * 392.85 mm (H*V)
Outline Dimensions	719.2 * 413.7 * 24.8 mm (HVD)
Bezel Area	703.4 * 397.9 mm (H*V)
Luminance	500 cd/m² (Typical)
Contrast Ratio	3000:1 (Typical)
Response Time	8 ms (Typical, G to G)
Refresh Rate	60Hz
Signal Type	LVDS (2 ch, 8-bit), 51 pins Connector
Voltage Supply	12.0V (Typical)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
Weight	4.59 kg (Typical)

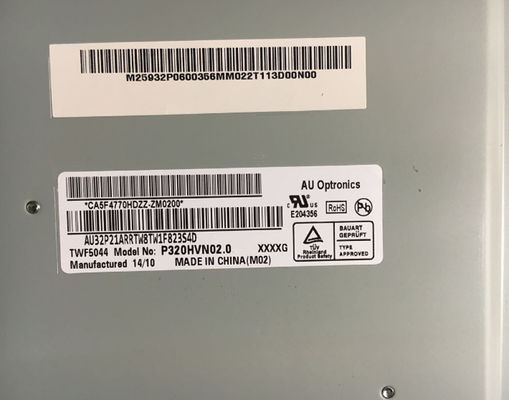

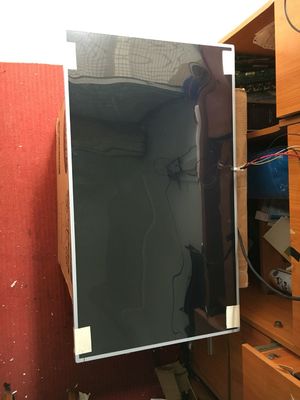

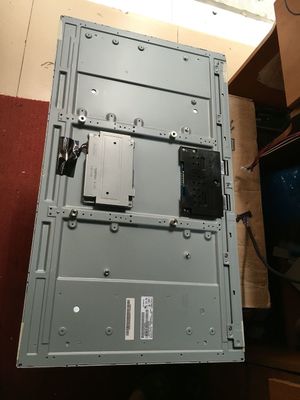

Product Images

Important Note: Mass production began in Q4 2014 and this model is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting AUO or their authorized agents directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
