12.1 Inch 300cd/m² SVGA Gaming LCD Panel with 800×600 Resolution TFT-LCD Screen

Name: 12.1 Inch 300cd/m² SVGA Gaming LCD Panel with 800×600 Resolution TFT-LCD Screen
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ121S1LG72
Price: 30.00 USD
Availability: InStock

Brand Name:	SHARP
Model Number:	LQ121S1LG72
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.07B Colors

Model:

WLED

Style:

Wide Screen High Resolution 800*600PIXELS

Brightness:

300cd

Connector:

30PIN

Contrast Ratio:

900:1

Working Time:

50k Hours

Input Voltage:

3.3 V

Signal Type:

LVDS

Packaging Details:

Industrial packing

Highlight:

12.1in SHARP Gaming Lcd Display

SVGA 82PPI SHARP Gaming Lcd Display

LQ121S1LG72

Product Description

SHARP LQ121S1LG72 Gaming LCD Display

12.1-inch diagonal a-Si TFT-LCD display panel from Sharp Corporation featuring SVGA resolution, WLED backlight system, and 30-pin LVDS interface. This industrial-grade display offers excellent performance for gaming applications with high luminance and wide viewing angles.

Key Specifications

Brand: Sharp

Model: LQ121S1LG72

Diagonal Size: 12.1 inch

Display Type: a-Si TFT-LCD, LCM

Resolution: 800(RGB)*600 [SVGA] 82PPI

Pixel Configuration: RGB Vertical Stripe

Active Area: 246(H)*184.5(V) mm

Outline Dimensions: 265(H)*205(V)*10(D) mm

Luminance: 300 cd/m² (Typ.)

Contrast Ratio: 900:1 (Typ.)

View Direction: 6 o'clock

Response Time: 30ms (Typ.), 10ms (G to G)

Viewing Angle: 80/80/60/80 (Typ.)

Operating Mode: TN, Normally White, Transmissive

Color Support: 16.2M 100% sRGB

Light Source: WLED, 50K hours, With LED Driver

Weight: 550g (Max.)

Frame Rate: 60Hz

Touch Panel: Without

Interface: LVDS (1 ch, 8-bit), 30 pins Connector

Power Supply: 3.3V (Typ.)

Environmental Specifications

Operating Temperature: -10°C to 75°C

Storage Temperature: -30°C to 75°C

Max Vibration Level: 1.0G (9.8 m/s²)

Key Features

sRGB color gamut support
WLED backlight with 50,000+ hour lifespan
Integrated LED driver
180° reverse capability
Matte surface with anti-glare treatment
Hard coating (3H) for durability
Embedded RGB independent γ correction circuit
Built-in dimming circuit
OS drive circuit

Production Status: This model entered mass production in Q4 2010 and is now discontinued. For current production status and latest specifications, please contact Sharp or their authorized agents.

The production status information is provided for reference only and should not be used as the sole basis for decision-making. Always verify current specifications with the manufacturer.

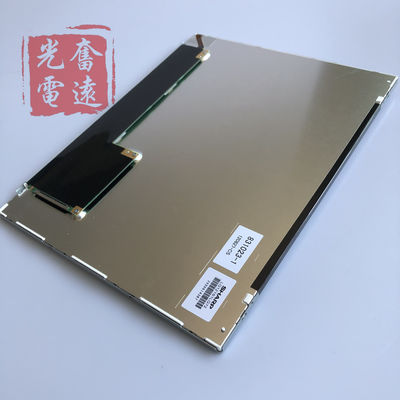

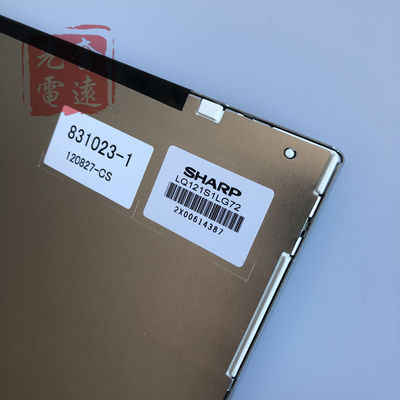

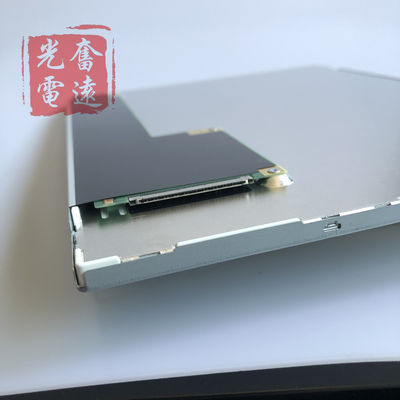

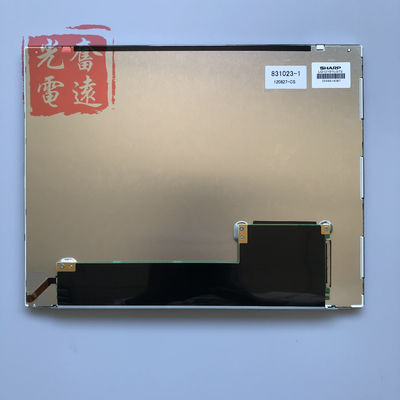

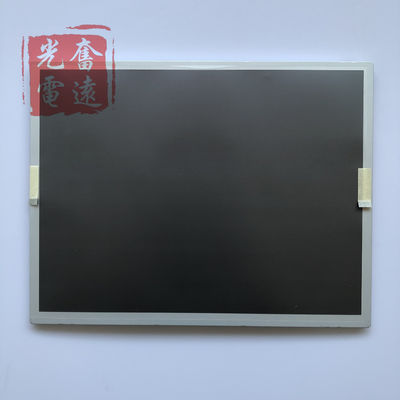

Product Images
