BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector

Name: BOE 12.2inch Digital Signage LCD Screen DV122FBM-N00 with 880×1080 Resolution 250cd/m² Brightness and 30pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: DV122FBM-N00
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV122FBM-N00
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 880*1080PIXELS

Brightness:

200cd

Connector:

30PIN

Contrast Ratio:

600:1

Working Time:

30k Hours

Input Voltage:

5.0 V

Packaging Details:

Industrial packing

Highlight:

30pin Digital Signage Lcd Screen

114PPI Digital Signage Lcd Screen

DV122FBM-N00

Product Description

880*1080 114PPI 30pin 250cd/m² Digital Signage LCD Screen DV122FBM-N00

BOE 12.2-inch Digital Signage LCD Screen DV122FBM-N00 - 880(RGB)*1080 pixels, 114PPI, 30-pin interface, 250 cd/m² typical brightness.

BOE Technology Group Co., Ltd. DV122FBM-N00 is a 12.2-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. This portrait-oriented display features matte surface treatment and operates within 0~50°C with storage temperature range of -20~60°C. Ideal for digital signage applications, this model entered mass production in Q3 2018 and remains in current production.

Key Specifications

Parameter	Specification
Brand	BOE
Diagonal Size	12.2 inch
Pixel Format	880(RGB)*1080, 114PPI
Active Area	199.32(H)*237.6(V) mm
Bezel Area	203.3(H)*241.1(V) mm
Luminance	250 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Color Support	16.7M, 72% NTSC
Frame Rate	60Hz

Display Characteristics

Feature	Description
Model	DV122FBM-N00
Type	a-Si TFT-LCD, LCM
Configuration	RGB Vertical Stripe
Outline Dimensions	215.32(H)*257.6(V) mm
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1000:1 (Typ.)
Response Time	14ms (Typ.)(G to G)
Operating Mode	HADS, Normally Black, Transmissive
Light Source	WLED, 30K hours, With LED Driver
Touch Panel	Without

Interface & Environmental Specifications

Interface Type: eDP (1 Lane) 30-pin Connector
Power Supply: 5.0V (Typ.)
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60°C

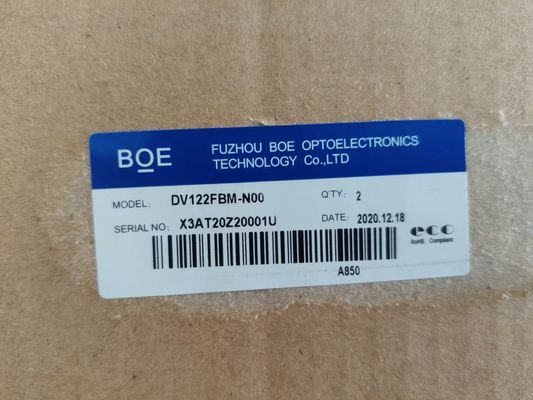

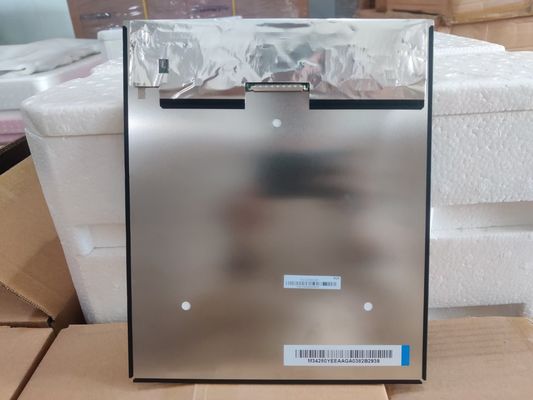

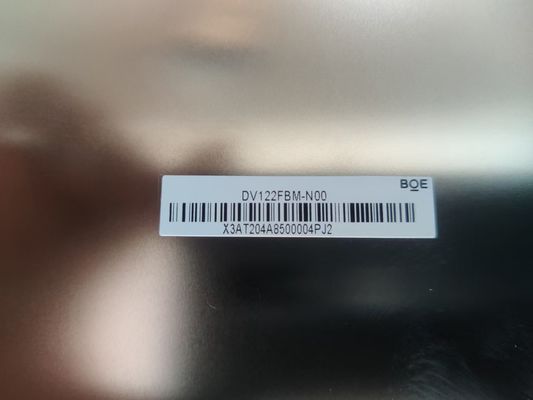

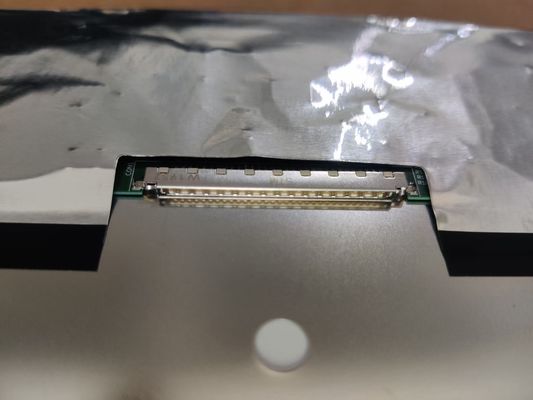

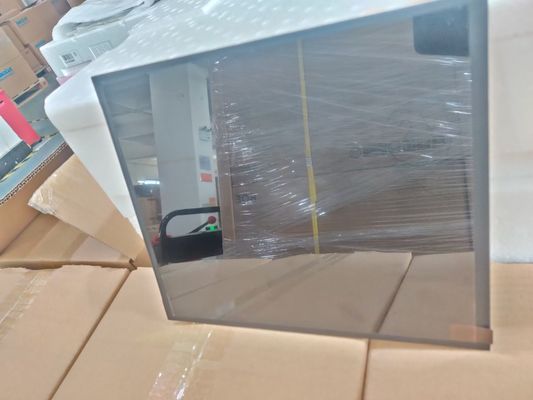

Product Images
