15.6 inch 1920x1080 FHD Desktop LCD Display with 40PIN eDP Interface and WLED Backlight

15.6 inch 1920x1080 FHD Desktop LCD Display with 40PIN eDP Interface and WLED Backlight

15.6 inch 1920x1080 FHD Desktop LCD Display with 40PIN eDP Interface and WLED Backlight

Brand Name: BOE
Model Number: NV156FHM-T10
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
1.07B Colors
Model:
WLED
Style:
Wide Screen High Resolution 1920*1080
Brightness:
250cd
Connector:
40PIN
Contrast Ratio:
800:1
Working Time:
15k Hours
Input Voltage:
3.3 V
Signal Type:
EPD
Packaging Details:
Industrial packing
Highlight:

15.6in Desktop Lcd Monitor

,

FHD 141PPI Desktop Lcd Monitor

,

NV156FHM-T10

Product Description
FHD 141PPI 15.6in Desktop LCD Monitor NV156FHM-T10 BOE0716
BOE 15.6-inch desktop LCD monitor NV156FHM-T10 (BOE0716) featuring 1920*1080 Full HD resolution, 141 PPI pixel density, 40-pin interface, 250 cd/m² brightness, and 262K color display capability.
Product Overview
NV156FHM-T10 (Product Code: BOE0716) is a 15.6" diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This panel features an integrated WLED backlight system with LED driver and On-Cell Touch technology. Suitable for laptop applications, this model entered mass production in Q1 2017 and remains in current production.
Key Features
  • WLED Backlight with LED Driver
  • Reverse Interface Technology
  • Glossy Surface Finish
  • On-Cell Touch Capability
  • Slim Profile Design (PCBA Flat, T≤3.2mm)
Technical Specifications
Panel Brand BOE
Panel Model NV156FHM-T10 (BOE0716)
Panel Size 15.6"
Panel Type a-Si TFT-LCD, Assembly
Resolution 1920(RGB)*1080, FHD, 141PPI
Pixel Format RGB Vertical Stripe
Display Area 344.16(W)*193.59(H) mm
Outline Size 373.5(W)*236.7(H)*4.35(D) mm
Surface Glare (Haze 0%), Hard coating (3H)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Display Mode ADS, Normally Black, Transmissive
Best View Symmetry
Response Time 30ms (Typ.)(Tr+Td)
Display Colors 262K 45% NTSC
Lamp Type 10S4P WLED, 15K hours, With LED Driver
Frequency 60Hz
Touch Screen On-Cell Touch
Signal Interface eDP (2 Lanes), 40 pins Connector
Input Voltage 3.3V (Typ.)
Operating Temperature 0 ~ 50°C
Storage Temperature -20 ~ 60°C
Vibration Level 1.5G (14.7 m/s²)
Application
15.6 inch 1920x1080 FHD Desktop LCD Display with 40PIN eDP Interface and WLED Backlight 0
Product Images

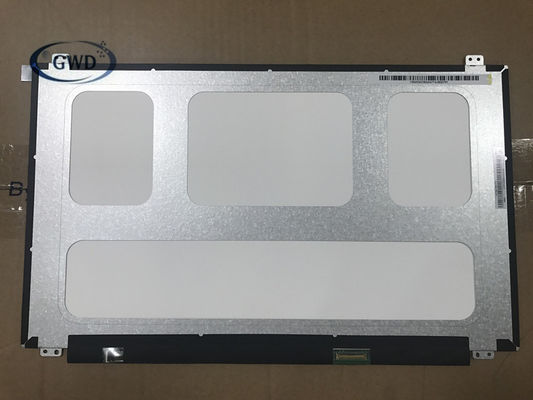

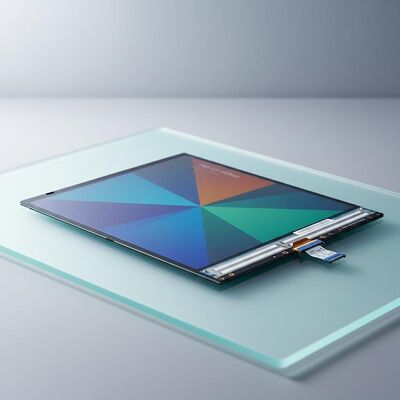

15.6 inch 1920x1080 FHD Desktop LCD Display with 40PIN eDP Interface and WLED Backlight 1 15.6 inch 1920x1080 FHD Desktop LCD Display with 40PIN eDP Interface and WLED Backlight 2
Important Note: All specification details are provided for reference purposes. EINKLCD strongly recommends contacting BOE or their authorized agents for the latest production status and detailed specifications before integrating this model into your products.
