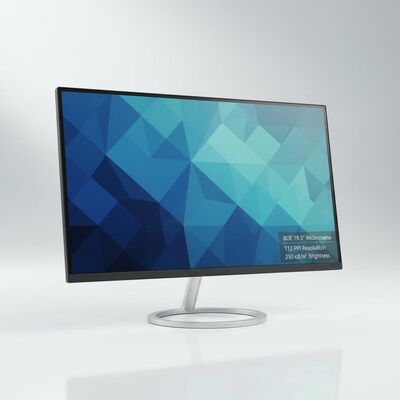

BOE 19.5" Widescreen LCD Monitor with 112PPI Resolution and 250cd/m2 Brightness for Desktop Use

Name: BOE 19.5" Widescreen LCD Monitor with 112PPI Resolution and 250cd/m2 Brightness for Desktop Use
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: DV195FHM-N00
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV195FHM-N00
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

250cd

Connector:

30PIN

Contrast Ratio:

1000:1

Working Time:

30k Hours

Input Voltage:

5.0 V

Packaging Details:

Industrial packing

Highlight:

250cd/m2 Widescreen LCD Computer Monitors

112PPI Widescreen LCD Computer Monitors

DV195FHM-N00

Product Description

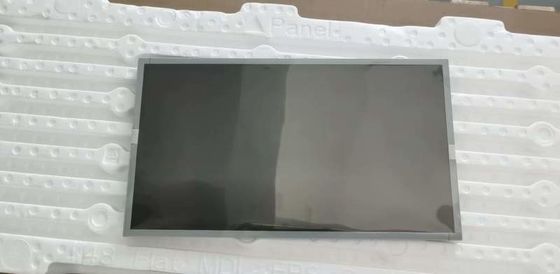

BOE DV195FHM-N00 19.5" FHD LCD Monitor Panel

The BOE DV195FHM-N00 is a 19.5-inch widescreen LCD monitor panel featuring Full HD resolution and advanced display technology. This a-Si TFT-LCD panel with WLED backlighting delivers crisp 1920*1080 resolution at 112 PPI, making it ideal for desktop monitor applications.

Key Features

19.5-inch diagonal widescreen display
Full HD 1920*1080 resolution at 112 PPI
250 cd/m² brightness with 1000:1 contrast ratio
WLED backlight with 30,000-hour lifespan
Wide 89/89/89/89 viewing angles
ADS technology with normally black display mode
14ms response time (G to G)
16.7 million colors with 72% NTSC color gamut

Technical Specifications

Panel Brand	BOE
Panel Model	DV195FHM-N00
Panel Size	19.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080, FHD, 112PPI
Pixel Format	RGB Vertical Stripe
Display Area	434.88(W) * 237.6(H) mm
Outline Size	454.88(W) * 257.6(H) mm
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Brightness	250 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Display Mode	ADS, Normally Black, Transmissive
Best View	Symmetry
Response Time	14ms (Typical, G to G)
Display Colors	16.7M, 72% NTSC
Backlight	WLED, 30K hours
Refresh Rate	60Hz
Touch Screen	Without
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Application

Note: This model entered mass production in Q3 2018 and is currently in production. For the latest production status and specification details, please contact BOE or their authorized distributors.
