BOE 20.7inch Desktop Gaming Monitor with 106PPI 200cd/m² Brightness and 1920×1080 FHD Resolution

Brand Name:	BOE
Model Number:	MT207FHM-N20
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

200cd

Connector:

30PIN

Contrast Ratio:

600:1

Working Time:

30k Hours

Input Voltage:

5.0 V

Packaging Details:

Industrial packing

Highlight:

BOE 20.7inch Desktop Gaming Monitor

200cd/M2 Desktop Gaming Monitor

106PPI Computer Widescreen Monitor

Product Description

BOE 20.7-inch Desktop Gaming Monitor

High-performance 20.7-inch FHD desktop LCD monitor featuring 1920*1080 resolution, 106PPI pixel density, and 200 cd/m² brightness. Ideal for gaming and professional applications.

Key Specifications

Panel Brand	BOE
Panel Size	20.7"
Resolution	1920(RGB)*1080, FHD, 106PPI
Display Area	457.92(W)*257.58(H) mm
Brightness	200 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.)
Viewing Angle	45/45/25/40 (Typ.)(CR≥10)
Response Time	1.5/3.5 (Typ.)(Tr/Td)
Refresh Rate	60Hz
Display Colors	16.7M 72% NTSC

Technical Details

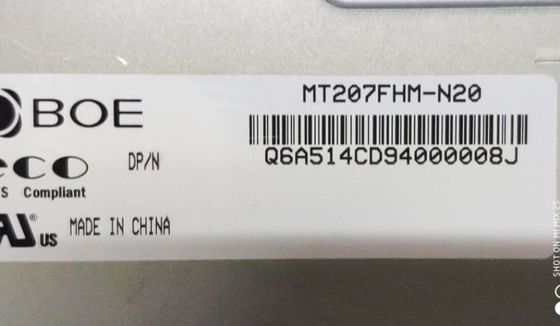

Panel Model	MT207FHM-N20
Panel Type	a-Si TFT-LCD, LCM
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Backlight System	3 strings WLED, 30K hours lifespan

Product Features

Full HD 1920*1080 resolution with 106PPI pixel density
TN display technology with normally white, transmissive mode
WLED backlight system with 30,000 hours lifespan
Antiglare surface with hard coating (3H hardness)
6 o'clock optimal viewing direction
Lightweight design at 1.63kg typical weight

This model is recommended for desktop monitor applications. For the latest production status and detailed specifications, please contact BOE or their authorized distributors directly.
