15.6 Inch Laptop LCD Monitor with 1920x1080 FHD Resolution 250cd/m² Brightness and 30PIN Connector

Name: 15.6 Inch Laptop LCD Monitor with 1920x1080 FHD Resolution 250cd/m² Brightness and 30PIN Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LM156LF1L02
Price: 30.00 USD
Availability: InStock

Brand Name:	PANDA
Model Number:	LM156LF1L02
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

272K Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

250cd

Connector:

30PIN

Contrast Ratio:

1000:1

Working Time:

10k Hours

Input Voltage:

3.3 V

Packaging Details:

Industrial packing

Highlight:

141PPI Laptop Lcd Monitors

1920x1080 Laptop Lcd Monitors

LM156LF1L02

Product Description

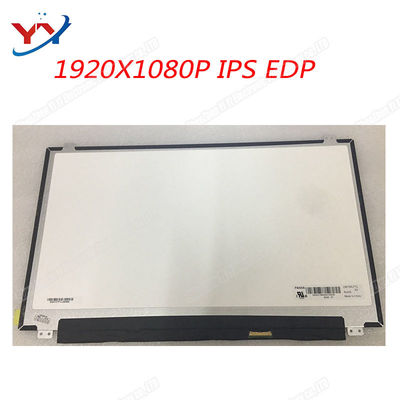

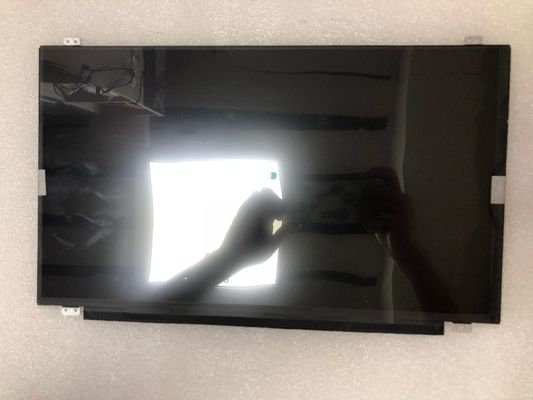

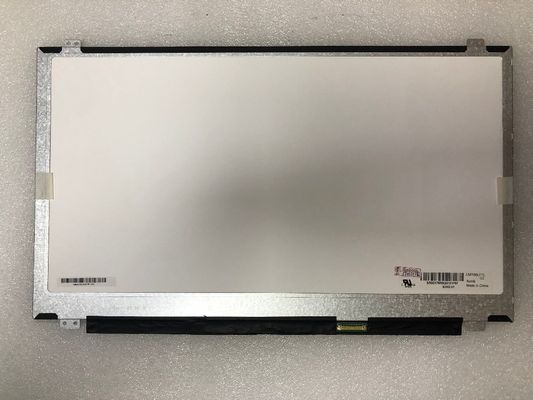

141PPI 15.6" 250cd/m² Laptop LCD Monitor 1920x1080 LM156LF1L02

PANDA 15.6-inch notebook laptop LCD display LM156LF1L02 featuring 1920*1080 pixels FHD resolution, 141PPI, EDP 30-pin connector, and 250 cd/m² brightness. Brand new condition.

Product Specifications

Brand	PANDA
Model	LM156LF1L02 (NCP000B) 39 Compatible
Diagonal Size	15.6 inch
Type	Oxide TFT-LCD, LCM
Pixel Format	1920(RGB)*1080 [FHD] 141PPI
Configuration	RGB Vertical Stripe
Active Area	344.16(H)*193.59(V) mm
Outline Dimensions	359.5(H)223.8(V)3.2(D) mm
Bezel Area	-
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25ms (Typ.)(Tr+Tf)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	FFS, Normally Black, Transmissive
Support Color	262K 45% NTSC
Light Source	WLED, 10K hours, With LED Driver
Form Style	Slim (PCBA Flat, T≤3.2mm)
Frame Rate	60Hz
Touch Panel	Without

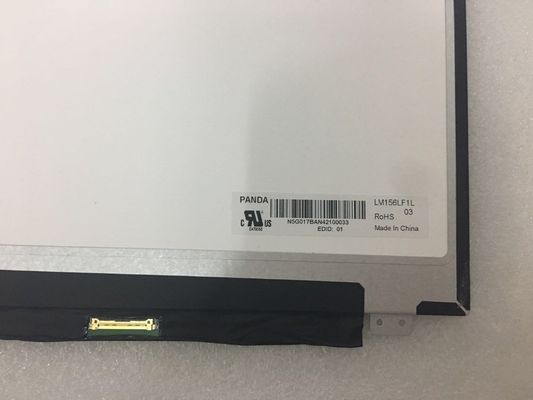

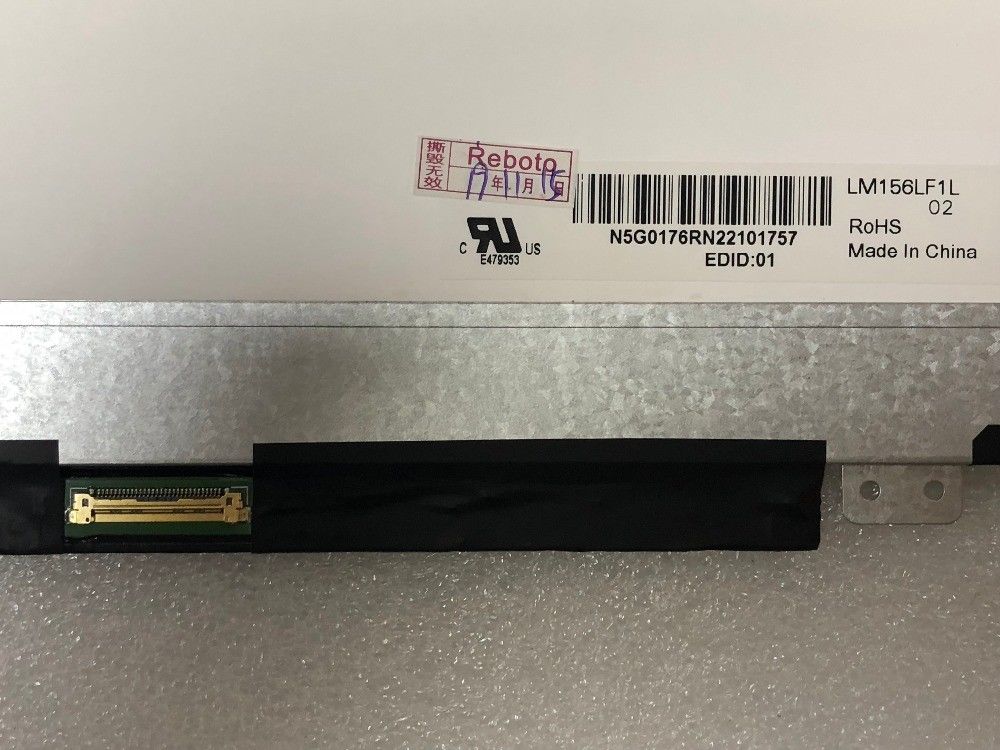

Interface Type	eDP (2 Lanes), 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0~50°C; Storage Temperature: -20~60°C

Key Features

15.6-inch Oxide TFT-LCD display panel
Full HD 1920*1080 resolution with 141 PPI
Integrated WLED backlight system with LED driver
eDP 1.2 interface with 30-pin connector
Antiglare surface with hard coating (3H)
Slim form factor design
Wide viewing angles: 85/85/85/85

Product Overview

The LM156LF1L02 (Product Code: NCP000B) is a 15.6" diagonal Oxide TFT-LCD display panel manufactured by Nanjing CEC Panda LCD Technology Co., Ltd. This panel features an integral WLED backlight system with LED driver and does not include a touch screen. It operates within a temperature range of 0~50°C and can be stored at -20~60°C.

This model is recommended for laptop applications and was originally mass produced in Q2 2016. Please note that this model has been discontinued.

For integration into future products, we strongly recommend contacting PANDA or their authorized agents to verify the latest production status and detailed specifications. The production status information provided is for reference only and should not be used as the sole basis for decision-making.
