| Brand Name: | AUO |
| Model Number: | M270HTN02.5 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
| Panel Brand |
|---|
| Panel Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Weight |
| AUO |
| 27.0" |
| 1920(RGB)×1080 , FHD |
| 597.6(W)×336.15(H) mm |
| 613.6(W)×356.85(H) ×11.8(D) mm |
| 300 cd/m² (Typ.) |
| 85/85/80/80 (Typ.)(CR≥10) |
| 6 o'clock |
| 16.7M 72% NTSC |
| 60Hz |
| 3.32Kgs (Typ.) |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| M270HTN02.5 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 601.6(W)×340.15(H) mm |
| Antiglare, Hard coating (3H) |
| 1000:1 (Typ.) (TM) |
| TN, Normally White, Transmissive |
| 3.8/1.2 (Typ.)(Tr/Td) |
| 18S4P WLED , 30K hours , Without Driver |
| Without |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
|---|---|
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

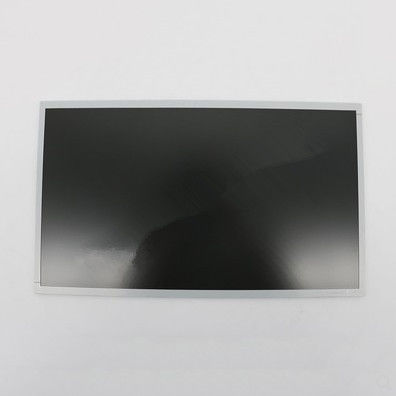

AU Optronics Corp. (hereafter called AUO) M270HTN02.5 is a 27.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by EINKLCDin the following: WLED Backlight, Reverse I/F, Matte , TCO 7.0. Based on its features, Einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in Einklcd this model mass production on Q4, 2016, Now this model is in production. We inputted this model's specification on Sep 30 2016 for the first time, and the latest update on Aug 20 2019. If you want to embed M270HTN02.5 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The M270HTN02.5 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
