27 Inch 1920x1080 Resolution LCD Monitor with 300cd Brightness for High Definition Computer Display

Name: 27 Inch 1920x1080 Resolution LCD Monitor with 300cd Brightness for High Definition Computer Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M270HTN02.5
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	M270HTN02.5
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.2m Colors

Model:

XGA

Style:

Wide Screen High Resolution 1920*1080Pixels

Brightness:

300cd

Connector:

Contrast Ratio:

1000:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

M270HTN02.5

30 PIN Widescreen Gaming Monitor

Product Description

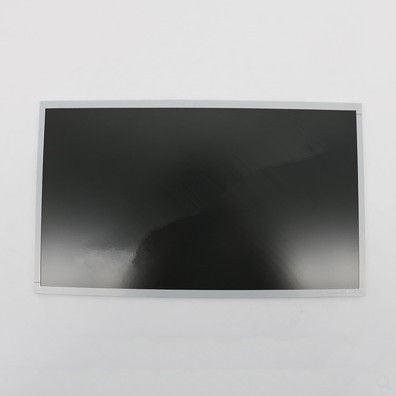

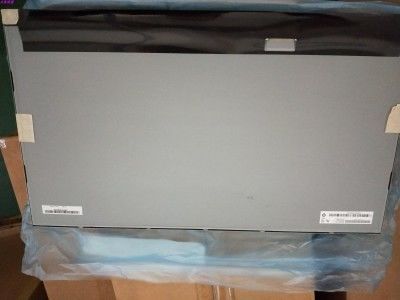

M270HTN02.5 27" 1920*1080 Widescreen LCD Computer Monitor

AUO 27-Inch FHD LCD Display Panel

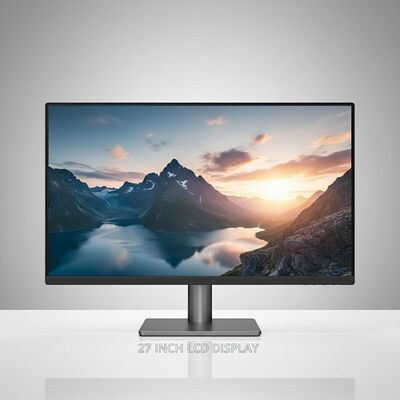

High-performance 27-inch widescreen LCD monitor featuring AU Optronics' M270HTN02.5 panel with 1920*1080 Full HD resolution.

Technical Specifications

Panel Brand	AUO	Panel Model	M270HTN02.5
Panel Size	27.0"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080 (FHD)	Pixel Format	RGB Vertical Stripe
Display Area	597.6(W)*336.15(H) mm	Bezel Opening	601.6(W)*340.15(H) mm
Outline Size	613.6(W)356.85(H)11.8(D) mm	Surface	Antiglare, Hard coating (3H)
Brightness	300 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
Best View On	6 o'clock	Response Time	3.8/1.2 (Typ.)(Tr/Td)
Display Colors	16.7M 72% NTSC	Lamp Type	18S4P WLED, 30K hours, Without Driver
Frequency	60Hz	Touch Screen	Without
Weight	3.32Kgs (Typ.)	Application	Desktop Monitor

Interface & Environmental Specifications

Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C

Product Overview

The AU Optronics M270HTN02.5 is a 27.0-inch diagonal a-Si TFT-LCD display panel featuring an integrated WLED backlight system. This panel operates without a backlight driver and does not include touch screen functionality.

Key features include WLED backlight technology, reverse interface, matte finish surface, and TCO 7.0 compliance. This model is specifically recommended for desktop monitor applications.

Mass production of the M270HTN02.5 began in Q4 2016, and the model remains in active production. For integration into your products, we strongly recommend contacting AUO or their authorized distributors for the latest production status and detailed specifications.

Note: Production status information provided is for reference only and should not be used as the sole basis for decision-making.
