1920x1200 Resolution 900 cd/m² Brightness 51 Pin Connector LCD Touch Screen Panel TFT-LCD Display

1920x1200 Resolution 900 cd/m² Brightness 51 Pin Connector LCD Touch Screen Panel TFT-LCD Display

1920x1200 Resolution 900 cd/m² Brightness 51 Pin Connector LCD Touch Screen Panel TFT-LCD Display

Brand Name: AUO
Model Number: G240UAN01.0
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Led
Color:
Black Or Silver,16.7M Color For Display
Model:
WLED,LCD
Style:
Wide Screen High Resolution 1366*768pixels
Brightness:
450 Cd/m²
Working Life:
50k Hours
Display Size:
32inch
Connector:
30pin
Packaging Details:
Industrial packing
Highlight:

G240UAN01.0

,

1920x1200 Touch Lcd Display

Product Description

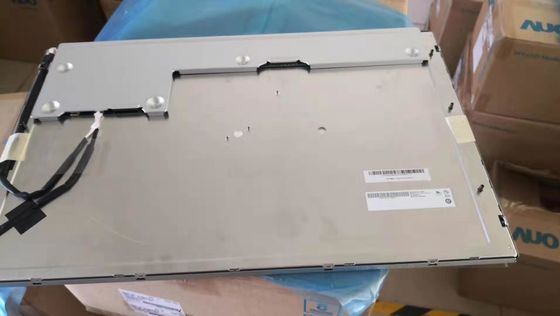

G240UAN01.0 24-inch WUXGA LCD Touch Screen Panel
Manufacturer AUO
Model Name G240UAN01.0
Screen Size 24.0 inch
Screen Type LCM, a-Si TFT-LCD
Resolution 1920×1200 (WUXGA)
Pixel Arrangement RGB Vertical Stripe
Luminance 900 cd/m² (Typical)
Contrast Ratio 1000:1 (Typical)
Technical Specifications
Active Area 518.4 × 324 mm (H×V)
Outline Dimensions 546.4 × 352 × 18.6 mm (H×V×D)
Bezel Area 521.4 × 327.0 mm (H×V)
Viewing Angle 89/89/89/89 (CR≥10)
Response Time 14 ms (Tr+Td)
Refresh Rate 60Hz
Color Depth 1.07B colors, 72% NTSC
Weight 2.50 kg (Typical)
Operating Characteristics
Work Mode AHVA, Normally Black, Transmissive
Surface Treatment Antiglare
Backlight WLED, 50K hours lifespan
Signal Type LVDS (2 ch, 10-bit)
Connector 51 pins
Voltage Supply 12.0±1.2V
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Touchscreen Without
Product Features
  • High brightness 900 cd/m² display
  • WUXGA resolution for detailed imagery
  • Wide viewing angles with symmetrical performance
  • Advanced HVHA technology with normally black mode
  • Long-life WLED backlight with integrated driver
  • Antiglare surface treatment for reduced reflections
  • LVDS interface with 51-pin connector
