Samsung LTA320AP12 32inch LCD Display with 1366x768 Resolution and 450 cd/m² Brightness

Name: Samsung LTA320AP12 32inch LCD Display with 1366x768 Resolution and 450 cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LTA320AP12
Price: 30.00 USD
Availability: InStock

Brand Name:	Samsung
Model Number:	LTA320AP12
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

Black Or Silver,16.7M Color For Display

Model:

WLED,LCD

Style:

Wide Screen High Resolution 1366*768pixels

Brightness:

450 Cd/m²

Working Life:

50k Hours

Display Size:

32inch

Connector:

30pin

Packaging Details:

Industrial packing

Highlight:

LTA320AP12

1366x768 Lcd Touch Display

Product Description

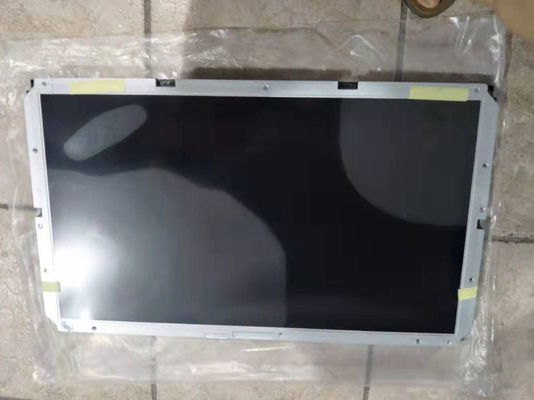

Samsung LTA320AP12 32" WXGA LCD Display Panel

Technical Specifications

Panel Brand	SAMSUNG
Panel Model	LTA320AP12
Panel Size	32.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366×768 (WXGA)
Display Area	697.685(W) × 392.256(H) mm
Brightness	450 cd/m² (Typical)
Contrast Ratio	4000:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10)
Response Time	8ms (G to G)
Display Colors	16.7M (72% NTSC)
Signal Interface	LVDS (1 ch, 8-bit), 30 pins
Input Voltage	12.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Product Overview

The Samsung LTA320AP12 is a 32.0-inch diagonal a-Si TFT-LCD display panel featuring an integrated CCFL backlight system with inverter. This industrial-grade panel offers excellent performance characteristics including wide viewing angles, high contrast ratio, and reliable operation across a broad temperature range.

Key Features

32-inch WXGA resolution (1366×768) display
High brightness 450 cd/m² with 4000:1 contrast ratio
Wide 89-degree viewing angles in all directions
CCFL backlight with 50,000-hour lifespan
Antiglare surface with hard coating (3H)
LVDS interface with 30-pin connector
Robust operating temperature range: 0°C to 50°C

Application Information

This display panel is recommended for television sets and similar applications requiring large-format, reliable LCD performance. The panel features APVA display technology with normally black mode for enhanced contrast and image quality.

Production Status Note: This model entered mass production in Q1 2010 and is currently discontinued. For current production status and latest specifications, please contact Samsung Display or their authorized agents directly.

Quality Assurance: All LCD products undergo individual testing prior to shipment to ensure optimal performance and reliability.
