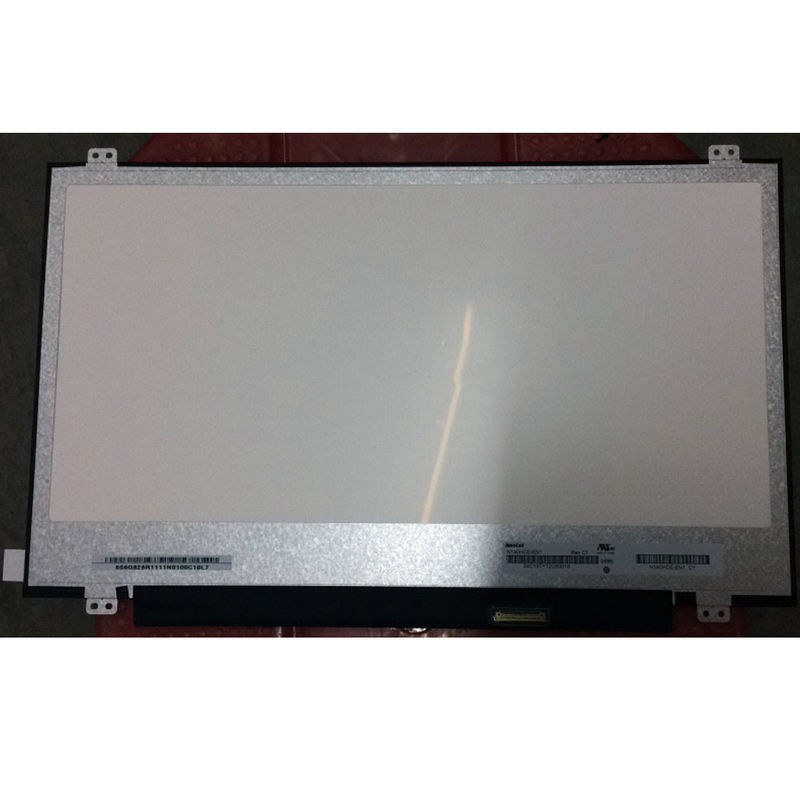

Innolux 14'' LCD Display Panel N140HCE-EN2 with 1920x1080 Resolution 300cd/m² Brightness and 30 Pin Connector

Name: Innolux 14'' LCD Display Panel N140HCE-EN2 with 1920x1080 Resolution 300cd/m² Brightness and 30 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: N140HCE-EN2
Price: 30.00 USD
Availability: InStock

Brand Name:	innolux
Model Number:	N140HCE-EN2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.2m Colors

Model:

XGA

Style:

Wide Screen High Resolution 1920*1080Pixels

Brightness:

300cd

Connector:

Contrast Ratio:

700:1

Working Time:

15k Hours

Packaging Details:

Industrial packing

Highlight:

high resolution touch screen monitor

smart touch screen monitor

Product Description

Innolux 14" Touch Screen Computer Monitor N140HCE-EN2

High-resolution 1920*1080 pixel panel with 300 cd/m² brightness and 30-pin eDP interface

Product Overview

Innolux 14-inch desktop LCD panel N140HCE-EN2 featuring Full HD resolution, anti-glare surface, and WLED backlight technology.

Technical Specifications

Panel Brand	Innolux
Panel Model	N140HCE-EN2 (CMN14D5)
Panel Size	14.0 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920*1080 (FHD)
Display Area	309.31*173.99 mm
Brightness	300 cd/m² (Typical)
Contrast Ratio	700:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10)
Response Time	14/11 ms (Tr/Td)
Display Colors	16.7M (100% sRGB)
Backlight	WLED, 15K hours
Refresh Rate	60Hz
Touch Screen	Without
Interface	eDP (1 Lane), 30 pins
Input Voltage	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Key Features

Full HD 1920*1080 resolution for crisp image quality
100% sRGB color gamut with 16.7 million display colors
Anti-glare hard coating surface for reduced reflections
WLED backlight with 15,000-hour lifespan
Slim design with narrow borders
eDP 1.2 interface with 30-pin connector
Wide 89-degree viewing angles
Ideal for laptop and desktop applications

Product Images

Quality Assurance: All LCD products include one year free quality warranty. Each unit undergoes comprehensive testing before delivery to ensure optimal performance and reliability.

Production Status: This model entered mass production in Q3 2017 and remains in current production. For the latest specifications and availability, please contact Innolux or their authorized representatives.
