AUO 14 Inch LCD Panel B140HAN03.9 with 300cd/m² Brightness 1920x1080 Resolution and 30 Pin Connector

Name: AUO 14 Inch LCD Panel B140HAN03.9 with 300cd/m² Brightness 1920x1080 Resolution and 30 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: B140HAN03.9
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	B140HAN03.9
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.2m Colors

Model:

XGA

Style:

Wide Screen High Resolution 1920*1080Pixels

Brightness:

300cd

Connector:

Contrast Ratio:

700:1

Working Time:

15k Hours

Packaging Details:

Industrial packing

Highlight:

high resolution touch screen monitor

smart touch screen monitor

Product Description

AUO 14 Inch Desktop LCD Panel B140HAN03.9

High-performance 14-inch FHD LCD panel with 300 cd/m² brightness, 72% NTSC color gamut, and eDP interface.

Product Specifications

Panel Brand	AUO	Panel Model	B140HAN03.9 (AUO393D)
Panel Size	14.0"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920 * 1080 (FHD)	Pixel Format	RGB Vertical Stripe
Display Area	309.37 * 174.02 mm	Outline Size	318.77 * 198.54 * 3 mm
Surface	Antiglare, Hard coating (3H)	Brightness	300 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.)	Viewing Angle	85/85/85/85 (Typ.)
Display Mode	AHVA, Normally Black	Response Time	25 ms (Typ.)
Display Colors	16.2M, 72% NTSC	Backlight	WLED, 15K hours
Refresh Rate	60Hz	Touch Screen	Without
Interface	eDP (2 Lanes), 30 pins	Input Voltage	3.3V (Typ.)
Operating Temperature	0°C to 50°C	Storage Temperature	-20°C to 60°C

Key Features

High-quality AUO panel with FHD 1920*1080 resolution
Excellent color reproduction with 72% NTSC gamut
WLED backlight system with integrated driver
Slim design with PCBA flat configuration
Antiglare surface with 3H hard coating
eDP 1.3 interface with 30-pin connector
Ideal for laptop and desktop display applications

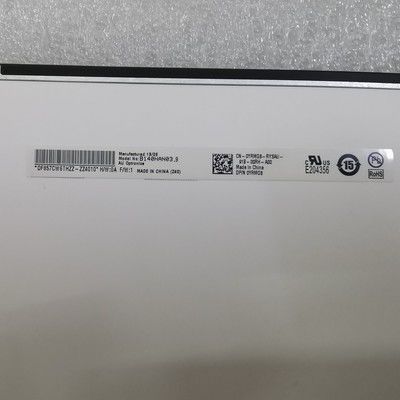

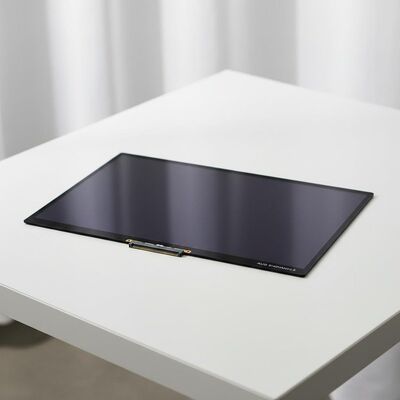

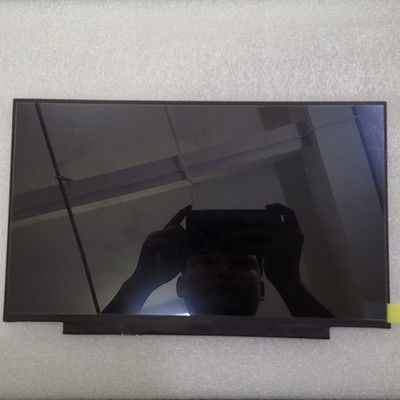

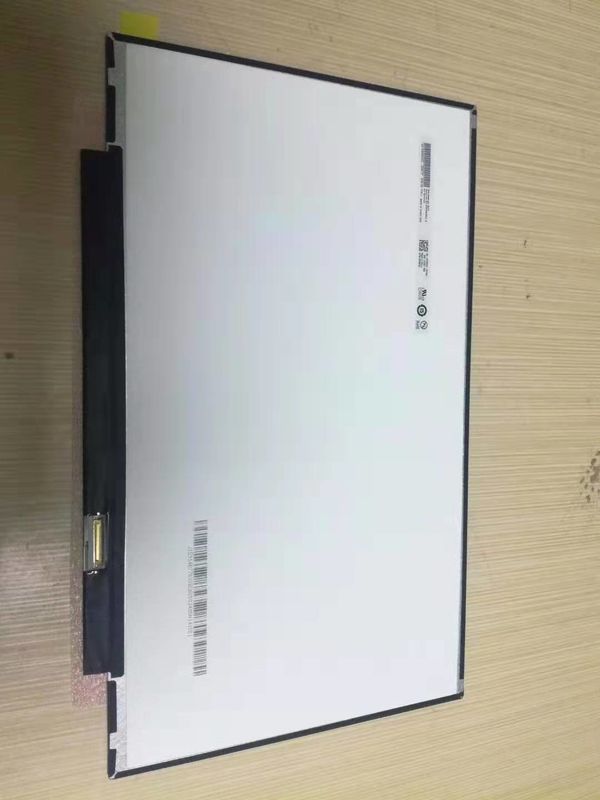

Product Images

Quality Assurance

One Year Warranty: All products include one year quality warranty with free exchange service.

Comprehensive Testing: Every LCD panel undergoes full individual testing before delivery to ensure optimal performance and reliability.

Note: This model entered mass production in Q4 2018 and is currently in production. For the latest specifications and production status, we recommend contacting AUO or their authorized agents.
